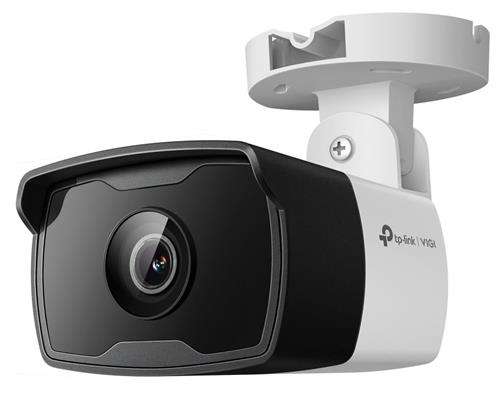

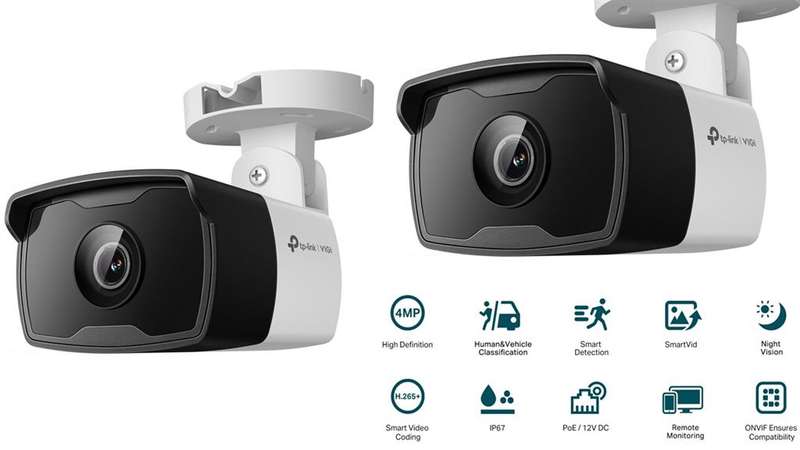

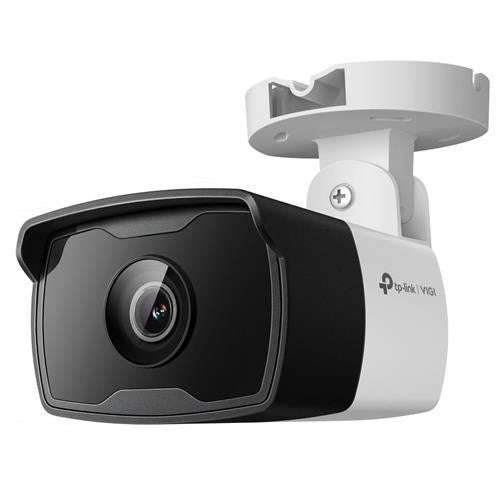

The TP-Link VIGI C340I delivers sharp 4MP video with night vision for outdoor security. It features smart detection and human/vehicle recognition for focused alerts and easy monitoring.
Specifications
Product code: VIGI-C340I(4MM)
Description: TP-Link VIGI C340I VIGI 4MP 4mm Outdoor IR Bullet Network Camera
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Aperture 2.8 mm: F2.2
4 mm: F2.2
6 mm: F2.0
Lens 2.8 mm/ 4 mm/ 6 mm
Lens Mount M12
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism IR Cut Filter
Day/Night Switch Day/Night/Auto/Schedule-Switch
Digital Noise Reduction 3D DNR
Weatherproof Rating IP67
IR Working Distance 30m
Viewing Angle 2.8mm: 88.8°/48.9°/106.5°(H/V/D)
Type Fixed Focal Lens
Focal Length 2.8 mm/4 mm/6 mm
Aperture 2.8 mm: F2. 2
4 mm: F2.0
6 mm: F2.0
FOV 2.8 mm:
DORI Distance 2.8 mm:
Detect: 60 m (197 ft)
Observe: 25 m (82 ft)
Recognize: 12 m (39 ft)
Identify: 6 m (20 ft)
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Detect: 120 m (394 ft)
Observe: 50 m (164 ft)
Recognize: 24 m (79 ft)
Identify: 12 m (39 ft)
Range Pan: -90° to 90°
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 2560 × 1440
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:640x480, 352x288, 320x240
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Dimensions ( H X W X D ) 174 × 74 × 71 mm
Power Consumption 12V DC: Max 5W
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
Product Dimensions (L x W x H) 73× 174 × 71 mm
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
