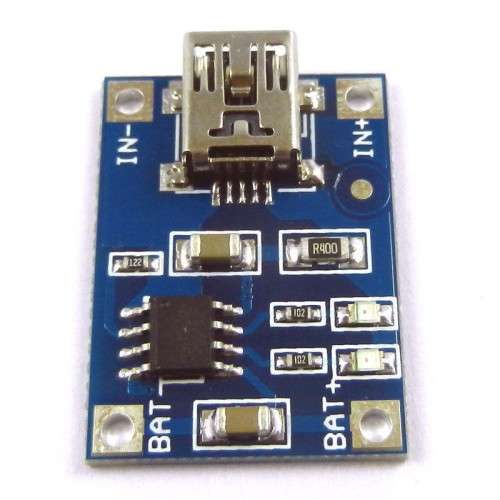

TP4056 1A Lipo Battery Charging Board Charger Module **** Local Stock

Here is a simple and a low cost Lithium Battery charging breakout board.

It uses a Micro USB for connecting the breakout board to any computer or ‘USB wall adapter’. It works with linear charging method. It offers 1000mA charge current by default but it is adjustable from 50mA to 1000mA by soldering a resistor. The default resistor soldered in on the board is 1.2K Ohm. A resistance and current table has been shown below on this page.

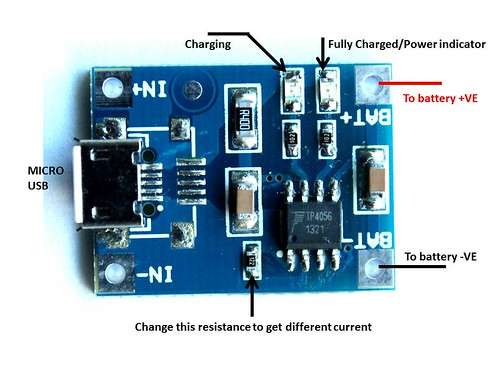

Look at the image below to know the functions of different components on the breakout board:

It is recommended that when you charge a battery, the current(in mA) offered by the breakout board is 37-40% of the battery capacity(in mAh). For example, if you are charging a battery of 1000mAh capacity, you should adjust the resistance in a way that the current offered is approximately 370mA-400mA.

  Save on shipping cost by ordering from our shop and pay per order and not per item

Visit our BOB store to view all our items:

https://www.bidorbuy.co.za/seller/1253047/Improved_Living

Add all your items to your cart and check out all in 1 order - Please note that shipping cost are not Per Item but as complete order

Copyright notice: All material on this listing is copyright of Improved Living. Duplication or sale of all or any part of it is not permitted

Other details:

Item Name:  5V Mini USB 1A Lithium Battery Charging Board
Charge module: Linear charging
Current: 1A adjustable
Charge precision: 1.5%
Input voltage: 4.5V-5.5V
Full charge voltage: 4.2V
Work temperature: -10¿ to +85¿
Inverse polarity: NO
LED indicator: Red is charging and GREEN is full charged
Input interface: Micro USB
