Description:

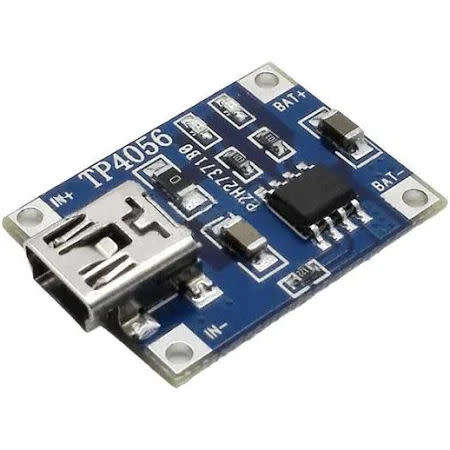

Item Name: Lipo battery charging board
Charging Method: linear charge
Charging Current: 1A Adjustable
Charge Accuracy: 1.5%
Input Voltage: 4.5V-5.5V
Full Charge Voltage: 4.2V
Charging Indicator: Blue light lit charge, red light litfull charge
Charging Input Interface: Mini USB
Working Temperature: -10 Degree to +85 Degree
Reverse: NO
Weight: 1.8g
External Dimensions: 25 * 19 * 10mm
Usage: Used for single lipo or multi-section lipo parallelcharging, can take power from the USB port.
Features:
Use mature charging chip TP4056, simple peripheral circuits,good protection performance and high charging accuracy.
Fully machinery automated processing, all patch partsmanufacturing.
Each module will be tested before shipment, highreliability.
Current can be adjusted, just change the circuit board fixedresistors, can change the output to the 100mA-1000mA, very convenient.
Note:
Input reverse connection has no effect on the chip, but theoutput (battery end) reverse connection will burn out the chip.
Ampere meter can only be series connected to the 5V inputend.
The charging current is best to be 0.37 times of the batterycapacity,
Charging wire can't be too thin or too long.
Make sure the board has good contact with the battery.
Chip at work about 60 degrees temperature is normal.
