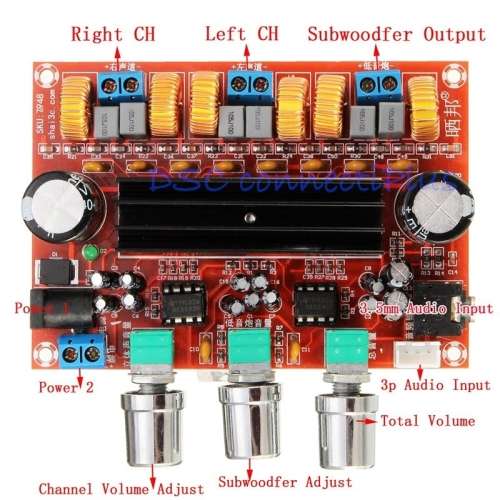

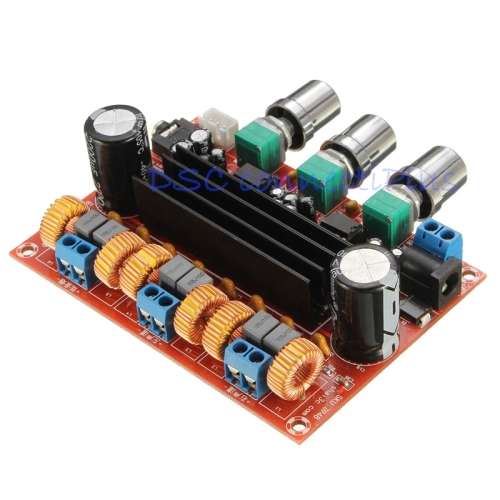

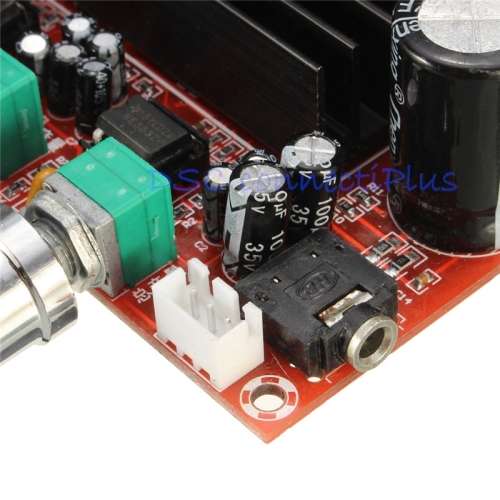

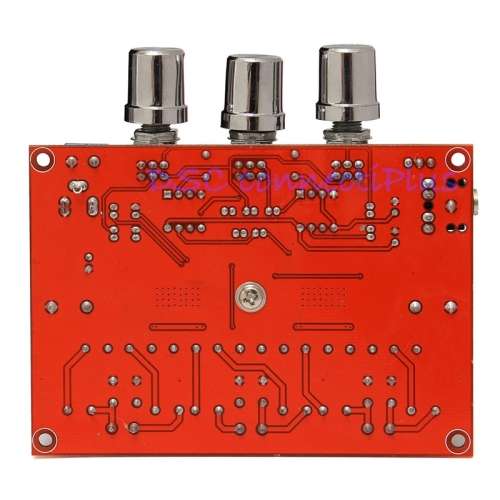

TPA3116D2 50Wx2 + 100W 2.1 Channel Digital Subwoofer Amplifier Board 12V-24V (Red)..!
Product Information
Specifications
The amplifier board adopts two imported TPA3116D2 digital amplifier chips as the core.
One piece as left and right channel power amplifier, other piece as pre-bridge driver.
With NE5532 subwoofer, with small, high efficiency and high power characteristics.
Chip Select: TPA31116D2 x2
Supply Voltage: DC 12~24V
Output Power: 50W x2 + 100W Subwoofer x1
Output Impedance: 4~8 Ohm
Frequency Range: 14~100Khz
SNR: 100dB
Number of Channels: 3 (Left Channel, Right Channel, Subwoodfer)
Switching Frequency: 1.2MHz

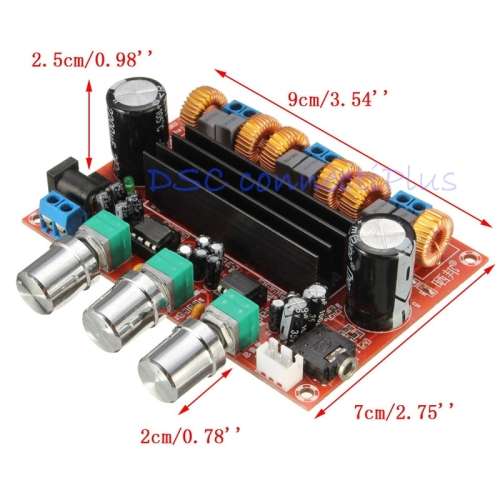

Size: L x W x H / 10 x 9 x 2.5cm / 3.93 x 3.54 x 0.98"
Packaging Details
Unit Type: Piece
Package Weight: 0.153kg (0.34lb.)
Package Size: 14 x 11 x 5cm (5.51 x 4.33 x 1.97in)

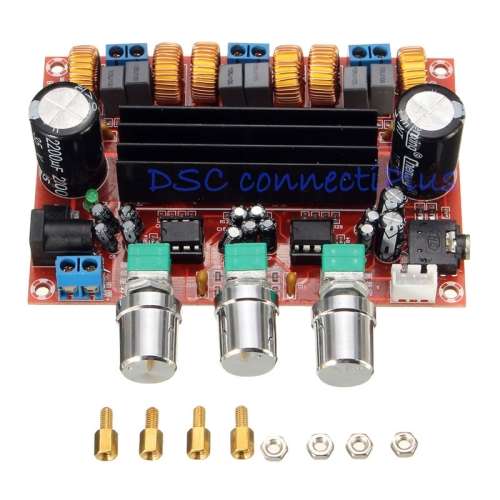

Package Contents
1x 2.1 Channel Audio Amplifier Board

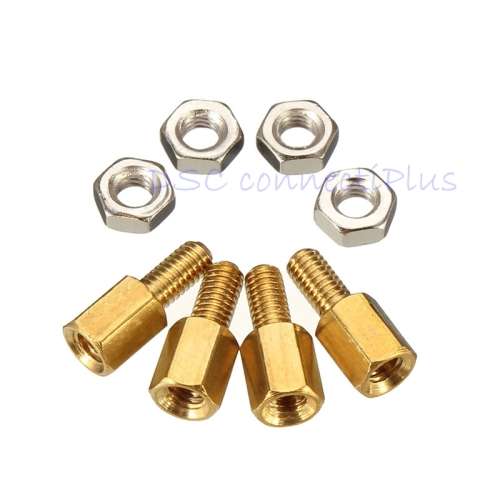

4x Screws
