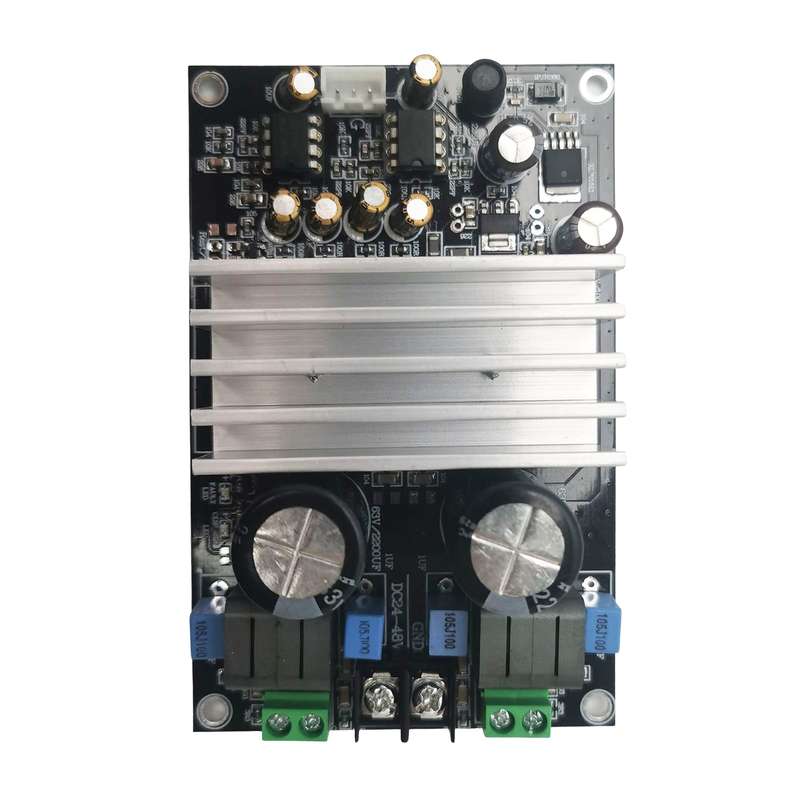

TPA3255 Class D Digital Power Amplifier Board DC 24-48V 2.0 Channel Mini Digital Audio Stereo

TPA3255 is a high-performance class D power amplifier, it has class D efficiency and can bring true high-end sound quality. In addition to excellent audio performance, it also features high power efficiency and ultra-low power level idle loss. With mini size and
high power, it's convenient in DIY installation and is practical to use.

Features:
It's a high-performance class D power amplifier with 2.0 channel, and can bring true high-end sound quality. Working voltage: DC 24-48V, recommended voltage 36V.
Features advanced integrated feedback design and proprietary high-speed gate driver error correction function. This technology allows the device to maintain ultra-low distortion throughout the audio frequency band while exhibiting perfect sound quality.
The device works in AD mode. When the THD is 10%, it can drive up to 2 315W/4ￎﾩ loads and 2 150W (unclipped power)/8ￎﾩ loads, and has a 2 VRMS analog input interface that supports high-performance DAC seamless connection.
With high power efficiency and ultra-low power level idle loss (￯ﾼﾜ2.5W). This can be achieved with an 85mR MOSFET and an optimized gate driver scheme. Compared with the traditional discrete implementation, this solution can significantly reduce idle loss.
PCB board size: 110 * 70 * 35mm. Small size, 300W + 300W high power, more convenient DIY installation.

Specifications:
Working Method: Class D
Standby Current: 80mA
Work Efficiency: >90%
Channel: 2.0
Rest/ Mute: Short circuit mute function
Output Power:
315W/4ￎﾩ, distortion 10%
185W/8ￎﾩ, distortion 10%
260W/4ￎﾩ, distortion 1%
150W/8ￎﾩ, distortion 1%
Frequency Response: 20Hz-20KHz
Dynamic Range: >100dB
Signal to Noise Ratio(SNR): >111dB
Working Voltage: DC 24-48V (recommended voltage 36V)

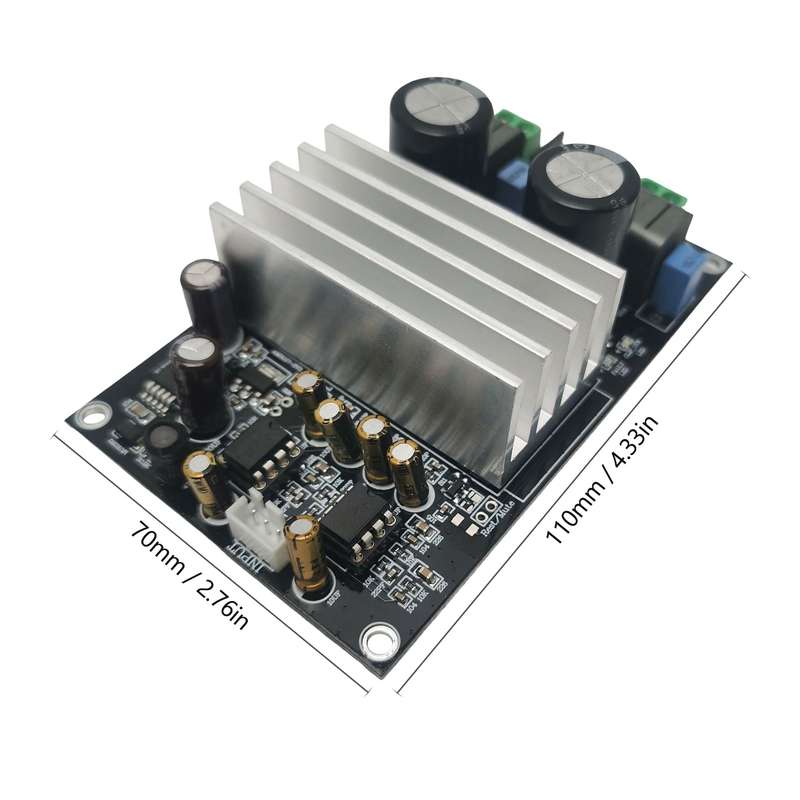

Item Size: Approx. 110 * 70 * 35mm / 4.33 * 2.76 * 1.38in
Package Size: Approx. 110 * 70 * 35mm / 4.33 * 2.76 * 1.38in
Package Weight: Approx. 150g / 5.29oz

Package List:

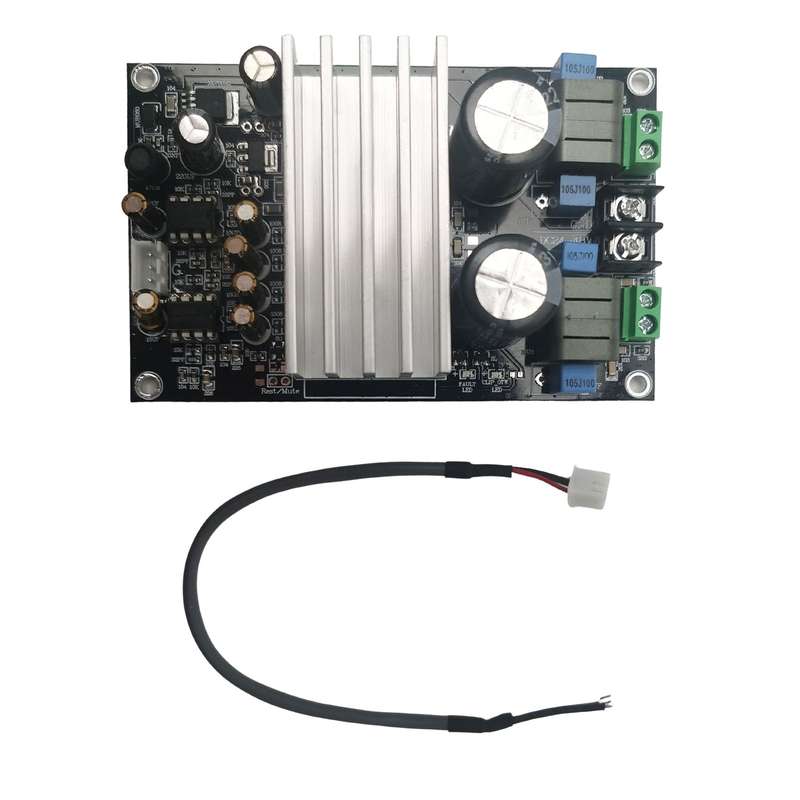

1 * Class D Digital Power Amplifier Board
