- 24 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design

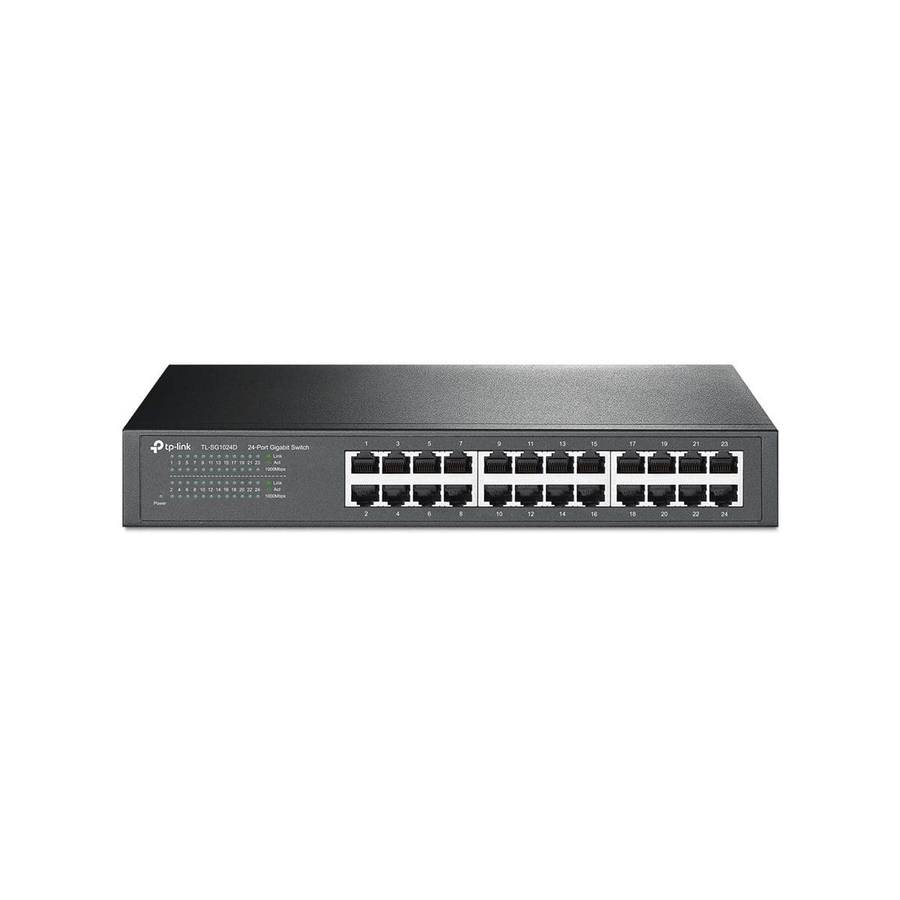

TPLINK TL-SG1024D 24-port Gigabit Switch
Specifications:
24 10/100/1000M RJ45 ports
1U Rack-mountable/Desktop steel case
Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
The TL-SG1024D 24-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20%* of the power consumption, making it an eco-friendly solution for your business network.
| HARDWARE FEATURES |
|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
|---|
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
|---|
| Fan Quantity | Fanless |
|---|
| Physical Security Lock | No |
|---|
| Power Supply | 100-240VAC, 50/60Hz |
|---|
| Power Consumption | Maximum: 13.1W (220V/50Hz) |
|---|
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
|---|
| Mounting | Rack Mountable |
|---|
| Max Power Consumption | 13.62W(220V/50Hz) |
|---|
| Max Heat Dissipation | 46.44BTU/h |
|---|
| PERFORMANCE |
|---|
| Switching Capacity | 48Gbps |
|---|
| Packet Forwarding Rate | 35.7Mpps |
|---|
| MAC Address Table | 8K |
|---|
| Jumbo Frame | 10KB |
|---|
| Green Technology | Yes |
|---|
| Transfer Method | Store-and-Forward |
|---|
| OTHERS |
|---|
| Certification | FCC, RoHS |
|---|
| Package Contents | 24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet |
|---|
| Environment | Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing |
|---|
