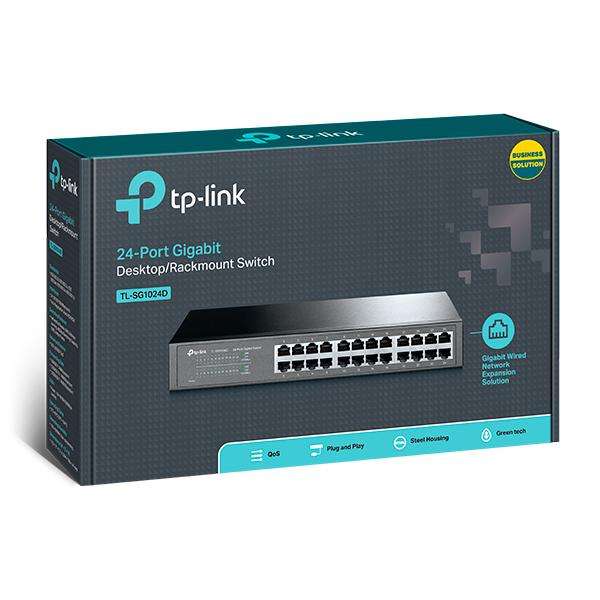

TPLINK 24PORT GBE RACKMOUNT SWITCH - TL-SG1024D
Unmanaged Switch
24-Port Gigabit Desktop/Rackmount Switch
24 10/100/1000Mbps Ports
Innovative Energy-Efficient Technology Saves Power Consumption
Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Plug & Play Design
Featured With 24 10/100/1000Mbps Ports
TL-SG1024D greatly expands your Network Capacity, enabling instant large Files Transferring
So, Power Users in the Home, Office, Workgroup, or Creative Production Environment can now move large
Bandwidth-Intensive Files faster
Transfer Graphics, CGI, CAD, or Multimedia Files across the Network Instantly
The TL-SG1024D 24-Port Gigabit Switch provides an easy way to make the Transition to Gigabit Ethernet
All 24 Ports Support Auto MDI/MDIX, no need to worry about the Cable Type
Simply Plug and Play. Moreover, with the Innovative Energy-Efficient Technology
The TL-SG1024D can save up to 20% of the Power Consumption
Making it an eco-friendly solution for your Business Network
HARDWARE FEATURES
Standards And Protocols_ IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
100BASE-TX/1000BASE-T: UTP Category 5, 5e or above Cable (Maximum 100m)
Fan Quantity_ Fanless
Physical Security Lock_ No
Power Supply_ 100-240VAC, 50/60Hz
Power Consumption_ Maximum_ 13.1W (220V/50Hz)
Dimensions ( W x D x H ): 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
Mounting: Rack Mountable
Max. Power Consumption_ 13.62W(220V/50Hz)
Max Heat Dissipation_ 46.44BTU/h
PERFORMANCE
Switching Capacity_ 48Gbps
Packet Forwarding Rate_ 35.7Mpps
MAC Address Table_ 8K
Advanced Features
Isolation Mode_ Ports 1-22
Loop Prevention_ Ports 1-24
Jumbo Frame_ 10KB
Green Technology_ Yes
Transmission Method_ Store-and-Forward
OTHERS
Certification: FCC, CE, RoHS
Package Content
24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment
Operating Temperature: 0C 40C (32F 104F)
Storage Temperature_ -40C 70C (-40F - 158F)
Operating Humidity_ 10% - 90% non-condensing
Storage Humidity_ 5% - 90% non-condensing
