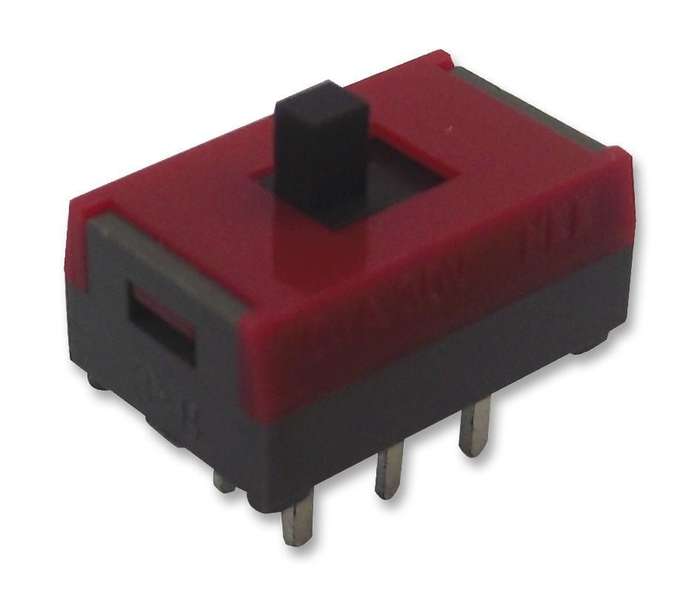

Nkk Switches (SS22SDP2) Slide Switch, DPDT, On-None-On, Through Hole

Slide Switch, DPDT, On-None-On, Through Hole, SS, 100 mAProduct InformationContact Configuration: DPDTSwitch Operation: On-None-OnSwitch Mounting: Through HoleProduct Range: SSContact Current Max: 100mAContact Voltage AC Max: -Contact Voltage DC Max: 30VOrientation: VerticalProduct OverviewThe SS22SDP2 is a double-pole double-throw (DPDT) ultra miniature Slide Switchwith brass with silver plating terminals, ON-NONE-ON function and top actuation.The SS series slide switch has polyamide actuator and phenolic resin (thermoset)interior base. The compact dimensions and low profile allow high densitymounting and close stacking of PC boards. The double moulded thermoset base andthermo-plastic housing prevent loosening of terminals due to high solderingtemperatures.Crisp actuation positively indicates circuit status0.100 x 0.100" Terminal spacing20mR Maximum contact resistance100MR at 500VDC Minimum insulation resistance500VAC for one minute Minimum dielectric strength10000 operations Minimum mechanical life10000 operations Minimum electrical lifeApplicationsIndustrial
