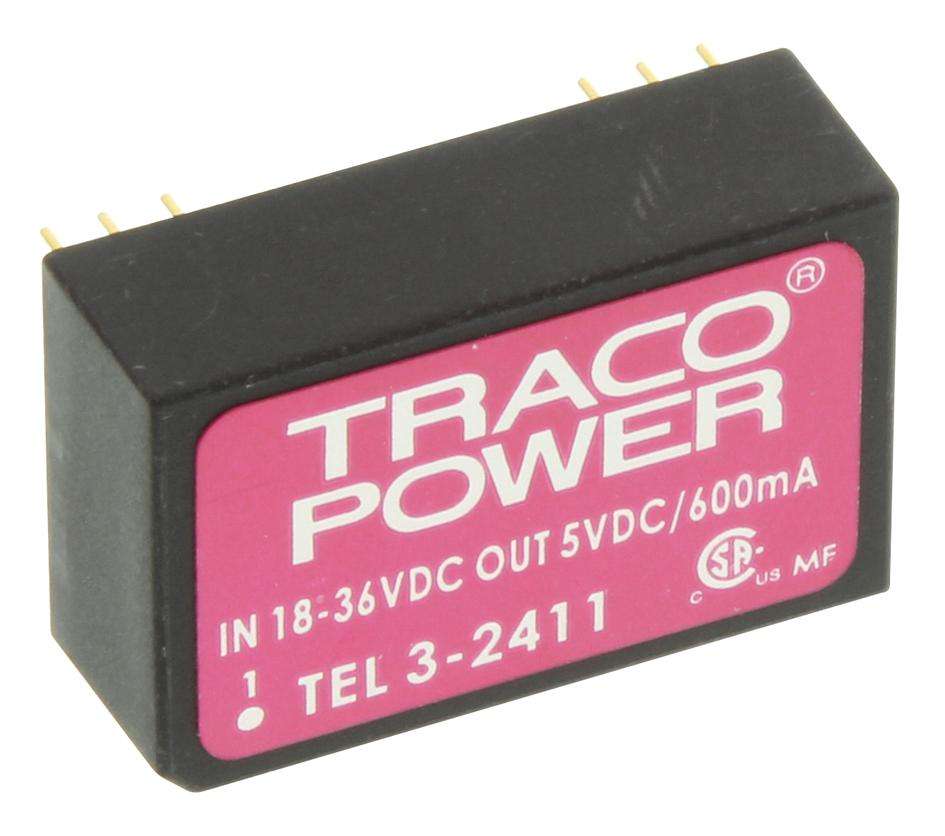

Isolated Through Hole DC/DC Converter, ITE, 2:1, 3 W, 1 Output, 5 V, 600 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 3WInput Ratio: 2:1Output Voltage - Output 1: 5VOutput Current - Output 1: 600mANo. of Outputs: 1 OutputOutput Regulation: RegulatedIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20mmHeight: 10.2mmDepth: 32mmProduct Range: TEL 3 SeriesProduct OverviewThe TEL 3 series from Tracopower are 3W, isolated DC to DC converters in DIL-24package. These converters offer wide 2:1 and 3:1 input voltage ranges. TEL 3series DC to DC converters feature high efficiency which allows operatingtemperature up to 71°C at full load and low output noise. These series providesan economical solution for low cost applications.High efficiency up to 81%Indefinite short circuit protectionI/O isolation voltage of 1500VDCOperating temperature range -40°C to 85°COutput voltage range from 5VDC to ±15VDCOutput current range from ±100mA to 600mASwitching frequency is 300KHzUL 60950-1, IEC/EN 60950-1, CSA approvedApplicationsPower Management, Industrial, Consumer Electronics
