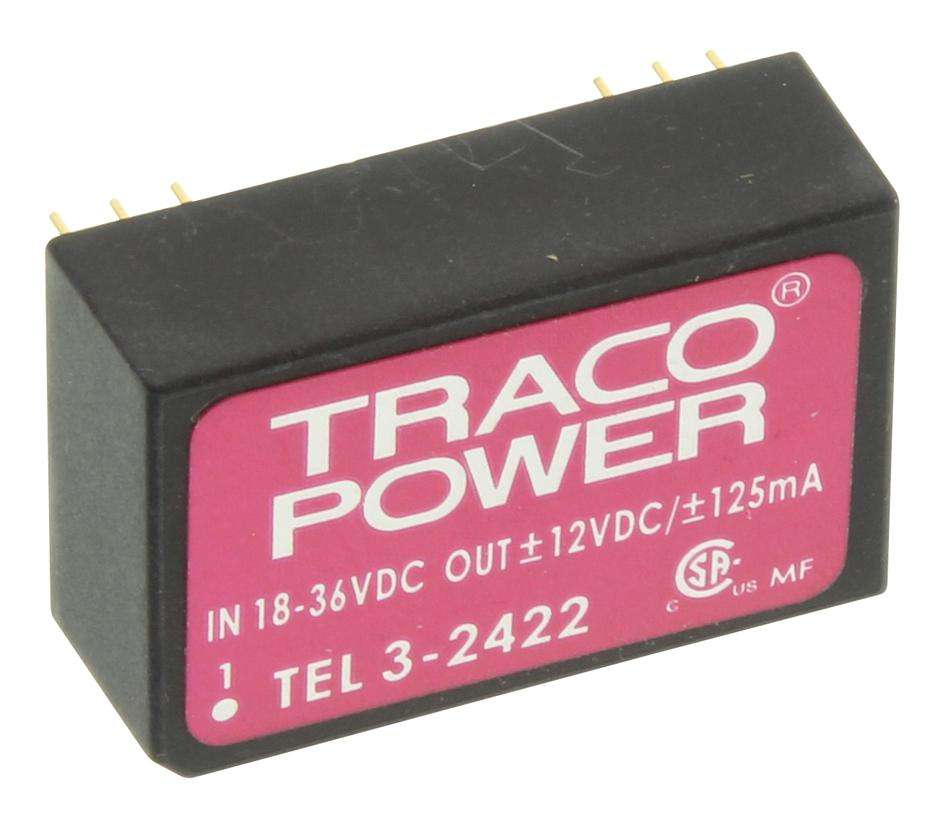

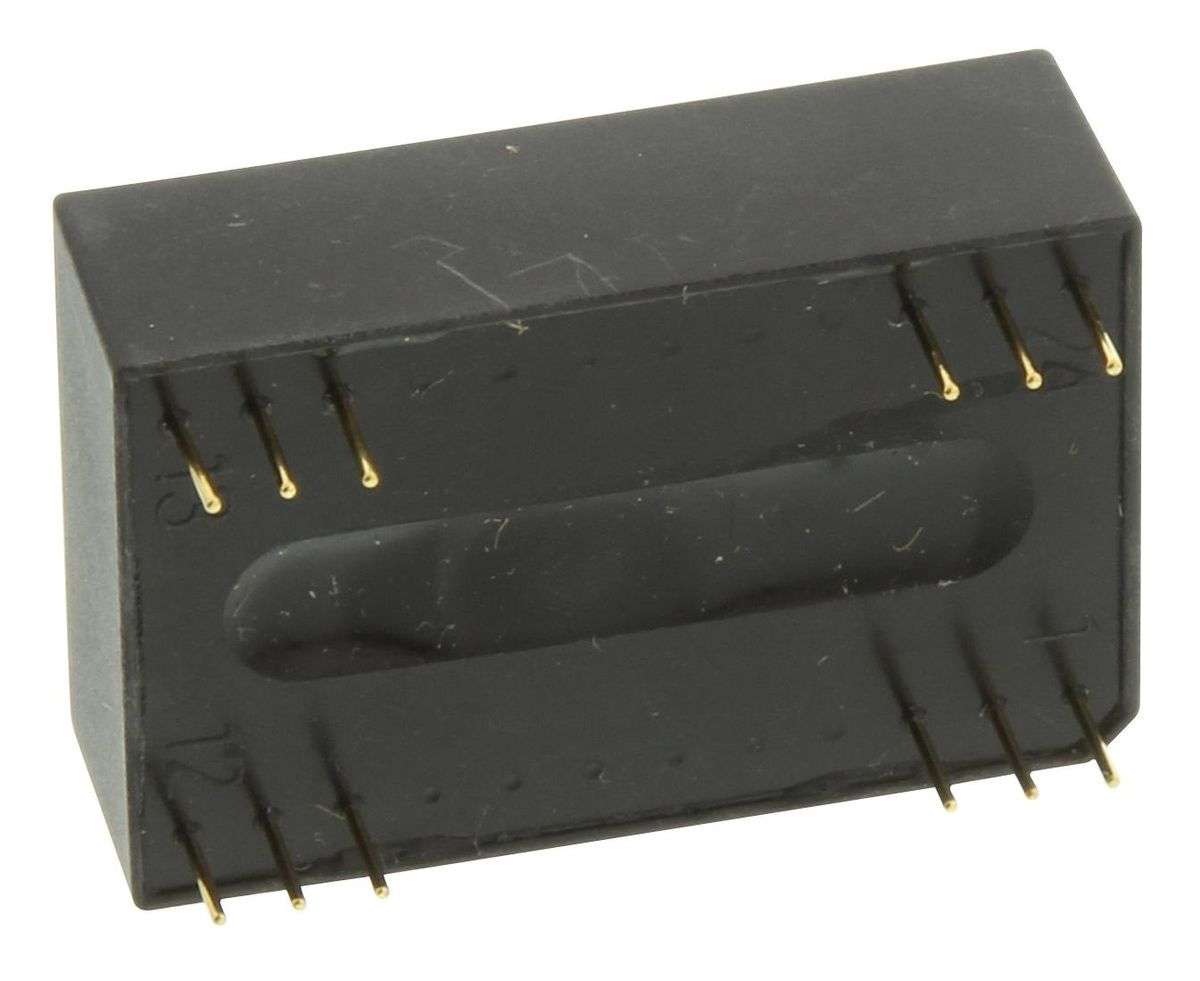

Isolated Through Hole DC/DC Converter, ITE, 2:1, 3 W, 2 Output, 12 V, 125 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 3WInput Ratio: 2:1Output Voltage - Output 1: 12VOutput Current - Output 1: 125mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -12VOutput Current - Output 2: 125mAOutput Regulation: RegulatedIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20mmHeight: 10.2mmDepth: 32mmProduct Range: TEL 3 SeriesProduct OverviewThe TEL 3-2422 is a 2-output board-mount isolated DC to DC Converter with wide2:1 and 3:1 input voltage ranges. The TEL 3 series 3W converter features lowoutput noise and high efficiency at full load.Indefinite short-circuit protectionHigh efficiency up to 81%1500VDC I/O Isolation
