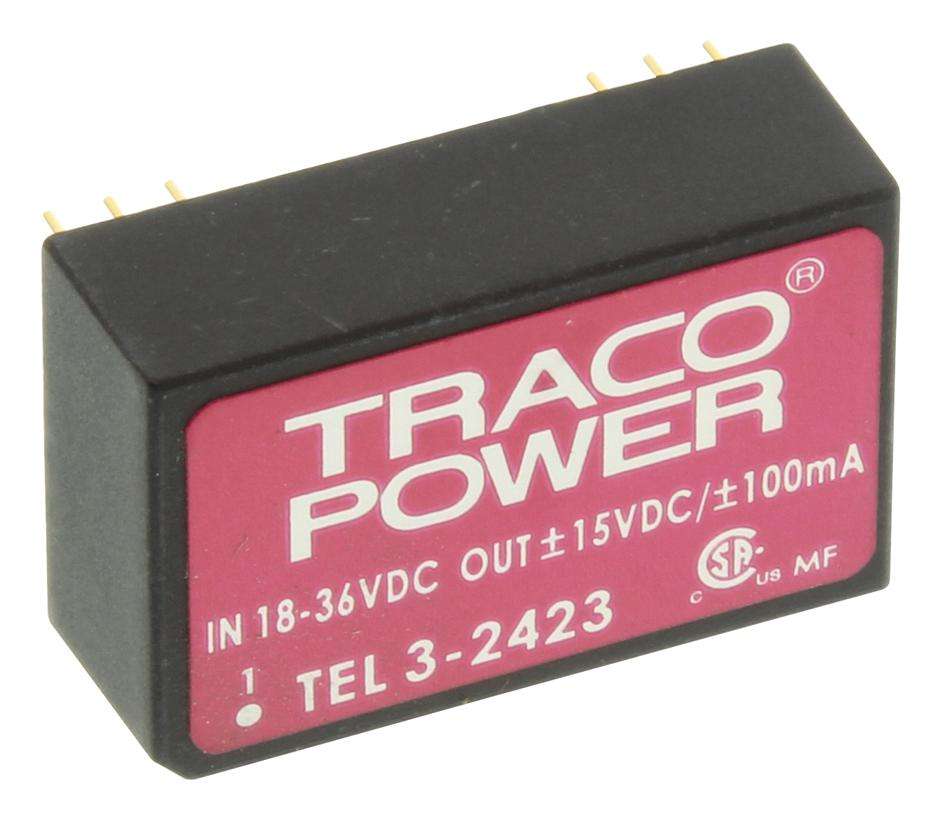

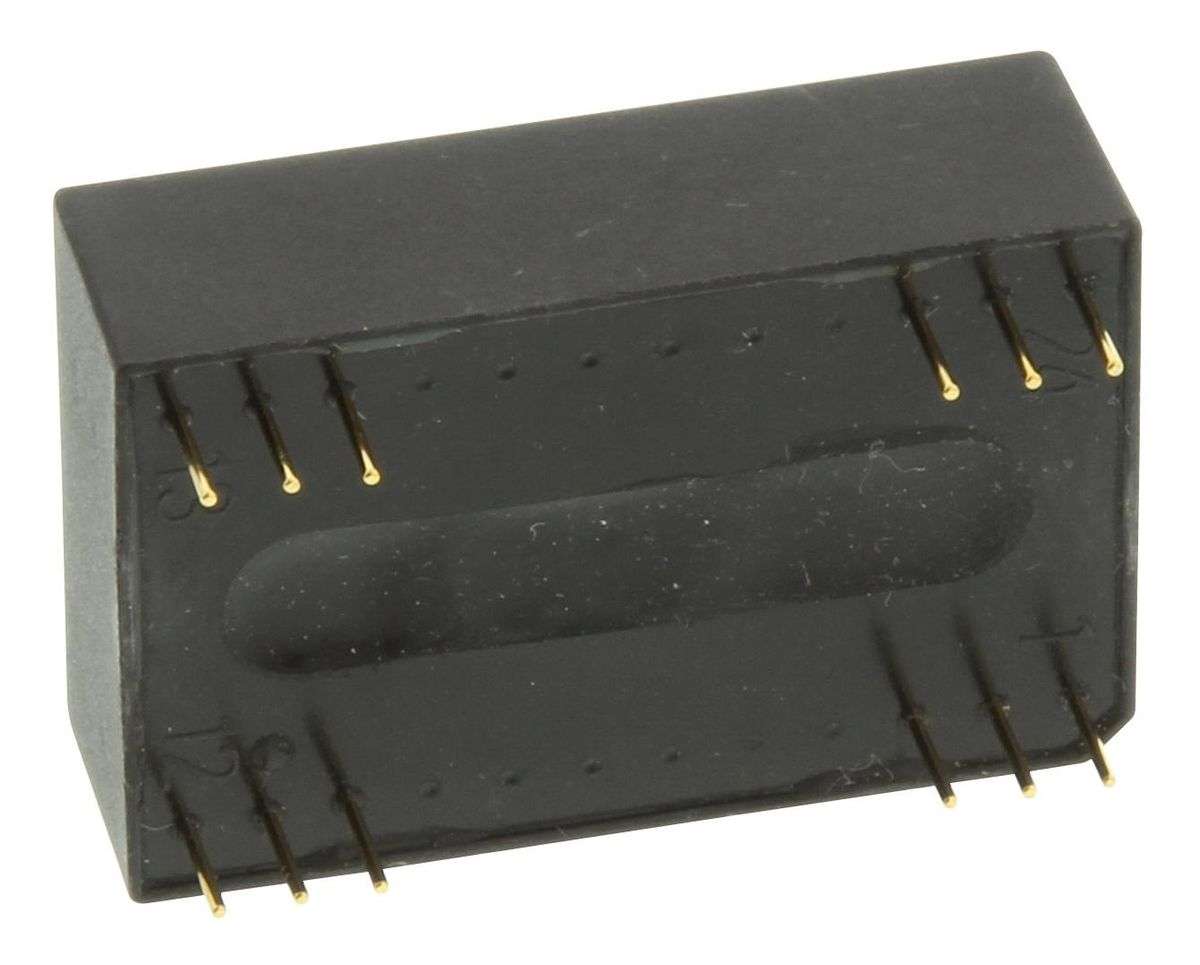

Isolated Through Hole DC/DC Converter, ITE, 2:1, 3 W, 2 Output, 15 V, 100 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 3WInput Ratio: 2:1Output Voltage - Output 1: 15VOutput Current - Output 1: 100mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -15VOutput Current - Output 2: 100mAOutput Regulation: RegulatedIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20mmHeight: 10.2mmDepth: 32mmProduct Range: TEL 3 SeriesProduct OverviewThe TEL 3-2423 is a 2-output board-mount Isolated DC/DC Converter features ultrawide input voltage ranges of 18 to 36VDC. A high efficiency allows operationtemperature up to +71°C at full load and low output noise.Wide 2:1 and 3:1 input range81% Efficiency1500VDC I/O isolation±0.02%/K Temperature coefficient1000µF Maximum capacitive load300kHz Switching frequencyIndefinite short-circuit protectionApplicationsIndustrial, Consumer Electronics
