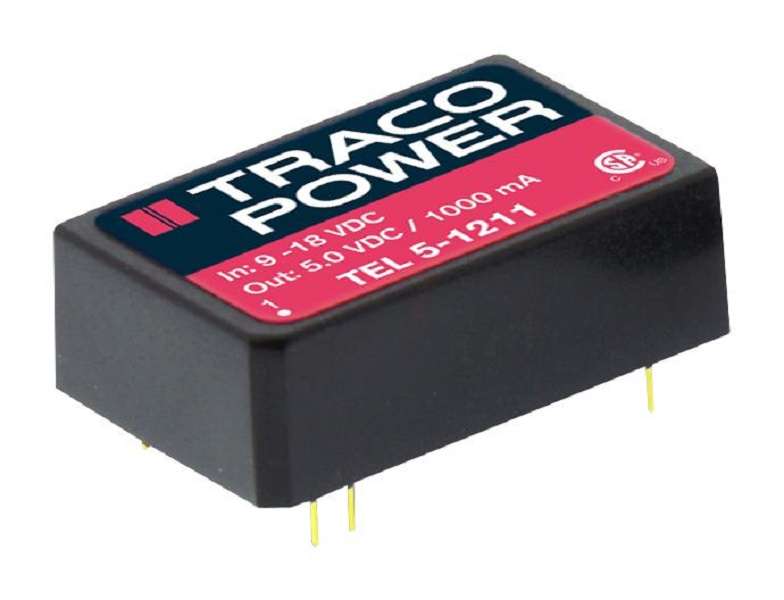

Isolated Through Hole DC/DC Converter, ITE, 2:1, 5 W, 1 Output, 5 V, 1 AProduct InformationPower Supply Approvals: ITEOutput Power Max: 5WInput Ratio: 2:1Output Voltage - Output 1: 5VOutput Current - Output 1: 1ANo. of Outputs: 1 OutputOutput Regulation: RegulatedIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20.3mmHeight: 10.2mmDepth: 32mmProduct Range: TEL 5 SeriesProduct OverviewThe TEL 5 series from Tracopower are 5W, DC to DC converters with wide inputrange of 2:1. These series feature very high reliability and excellent cost/performance ratio. TEL 5 series DC to DC converters provide an economicalsolution for low cost applications. These are approved by UL/cUL 60950-1, IEC/EN60950-1, CSA standards. TEL 5 series have isolation voltage of 1500VDC.Input range ranges from 9VDC to 18VDC and 18VDC to 36VDCCost efficient SMD designOperating temperature range -40°C to 85°CHigh efficiency up to 86%Switching frequency is 300KHzInput filter to meet EN 55022 Class A, FCC, level A without external componentsIndefinite short circuit protection24 pin DIP package with industry standard pinoutOutput voltage range from 3.3VDC to ±15VDCOutput current range from ±200mA to 1200mAApplicationsPower Management, Industrial, Consumer Electronics
