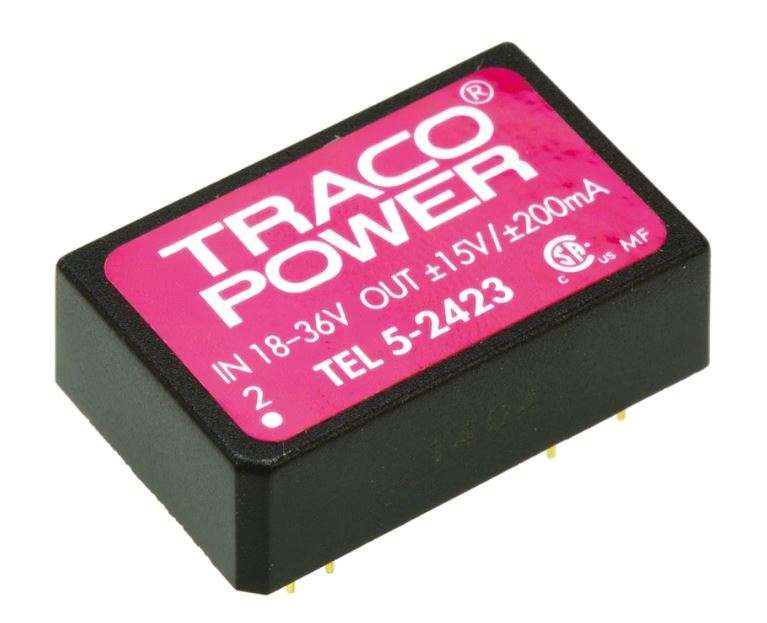

Traco Power (TEL 5-2423) Isolated Through Hole DC/DC Converter, 15V, 200mA

Isolated Through Hole DC/DC Converter, ITE, 2:1, 5 W, 2 Output, 15 V, 200 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 5WInput Ratio: 2:1Output Voltage - Output 1: 15VOutput Current - Output 1: 200mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -15VOutput Current - Output 2: 200mAOutput Regulation: RegulatedIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20.3mmHeight: 10.2mmDepth: 32mmProduct Range: TEL 5 SeriesProduct OverviewThe TEL 5-2423 is a 2-output board-mount isolated DC to DC Converter withregulated output voltage and 2:1 wide input range. The TEL 5 series 5W converterfeatures high reliability and high efficiency. State of the art SMD-technologyguarantees a product with very excellent cost/performance ratio.High power densityHigh efficiency up to 86%1500VDC I/O IsolationInput filter to meet EN 55022, class A and FCC, level A without externalcomponentsIndefinite short-circuit protection24-pin DIP with industry standard pinout-40 to +85°C Operating temperature rangeApplicationsIndustrial, Consumer Electronics
