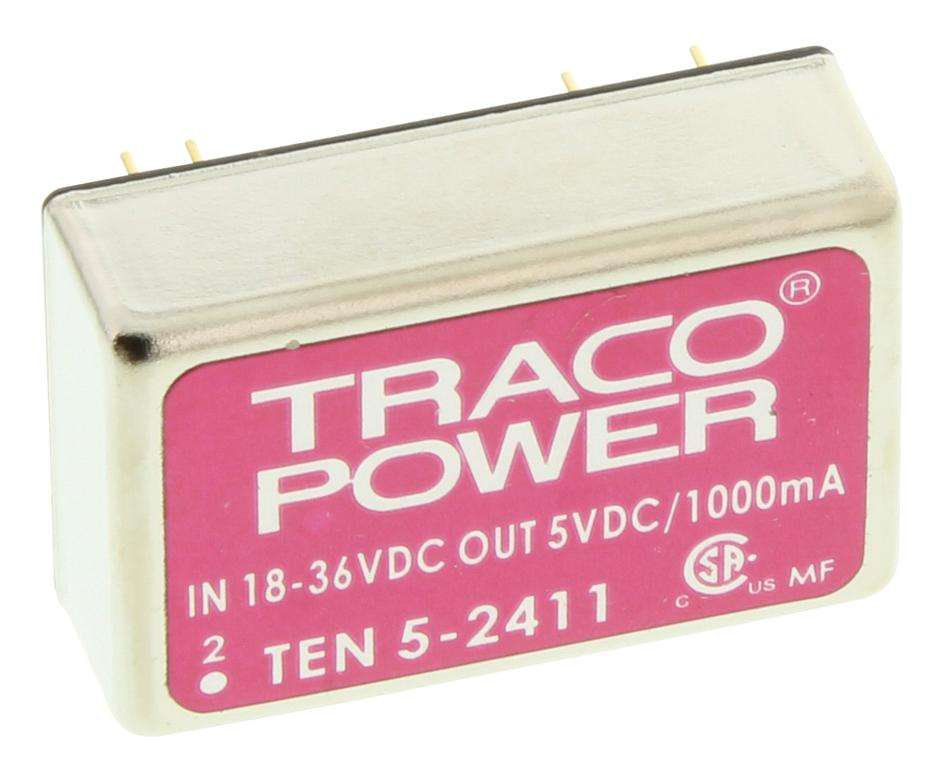

Traco Power (TEN 5-2411) Isolated Through Hole DC/DC Converter, 5V, 1A

Isolated Through Hole DC/DC Converter, ITE, 2:1, 6 W, 1 Output, 5 V, 1 AProduct InformationPower Supply Approvals: ITEOutput Power Max: 6WInput Ratio: 2:1Output Voltage - Output 1: 5VOutput Current - Output 1: 1ANo. of Outputs: 1 OutputIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 31.8mmHeight: 10.2mmDepth: 20.3mmProduct Range: TEN 5 SeriesProduct OverviewTEN 5 series is a range of DC/DC converter modules with wide input range of 2:1.State of the art SMD-technology guarantees a product with very high reliabilityand good cost /performance ratio. I/O-isolation of 1500VDC together withconducted noise compliance to EN 55022-A and FCC level A makes these convertersideal for a wide range of applications in communications, mobile battery poweredequipments and industrial systems.Full SMD-designHigh efficiencyExtended operating temperature range from -40°C to 85°CI/O isolation of 1500VDCIndefinite short circuit protectionShielded metal case with insulated baseplate24-pin DIP with industry standard pinout, UL 60950-1, IEC/EN 60950-1 safetystandardsHigh reliability, MTBF >1 Mio. H3-year product warrantySteel, metal casing material and non conductive FR4 baseplate material
