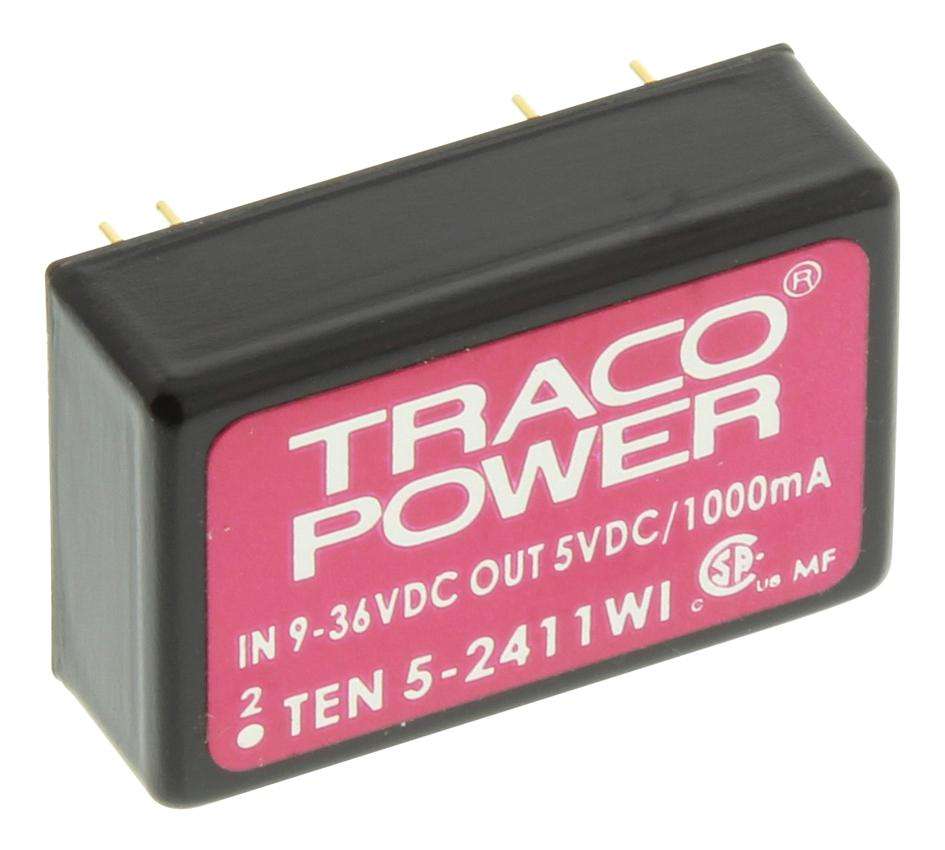

Traco Power (TEN 5-2411WI) Isolated Through Hole DC/DC Converter, 5V 1A Traco Power (TEN 5-2411WI) Isolated Through Hole DC/DC Converter, 5V 1A
Traco Power (TEN 5-2411WI) Isolated Through Hole DC/DC Converter, 5V 1A Traco Power (TEN 5-2411WI) Isolated Through Hole DC/DC Converter, 5V 1A

Traco Power (TEN 5-2411WI) Isolated Through Hole DC/DC Converter, 5V 1A

New 250 available
R1,735.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1007473
Bob Shop ID
673045124
Isolated Through Hole DC/DC Converter, ITE, 4:1, 5 W, 1 Output, 5 V, 1 AProduct InformationPower Supply Approvals: ITEOutput Power Max: 5WInput Ratio: 4:1Output Voltage - Output 1: 5VOutput Current - Output 1: 1ANo. of Outputs: 1 OutputIsolation Voltage: 1.5kVInput Voltage DC Min: 9VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20.3mmHeight: 10.2mmDepth: 31.8mmProduct Range: TEN 5WI SeriesProduct OverviewThe TEN 5WI series from Tracopower are board mount, isolated single output DC toDC converters. These high performance DC to DC converter modules feature ultrawide input voltage range from 9VDC to 36VDC and 18VDC to 75VDC. TEN 5WI seriescomes in a shielded DIP-24 metal package with industry standard footprint. TheseDC to DC converters are approved by CSA, cUL/UL 60950-1, IEC/EN 60950-1standards. Typical applications include battery operated equipment anddistributed power architectures.6W output powerUltra wide 4:1 input rangeOutput voltage range from 3.3VDC to ±15VDCOutput current range from ±200mA to 1200mAHigh efficiency up to 83%Excellent load and line regulationIndefinite short circuit protectionI/O isolation of 1500VDCBuilt-in filter to meet EN 55022 class A, FCC, level A standardsExtended operating temperature range from -40°C to 85°CApplicationsIndustrial, Power Management, Communications & Networking, Sensing &Instrumentation
Add to cart
