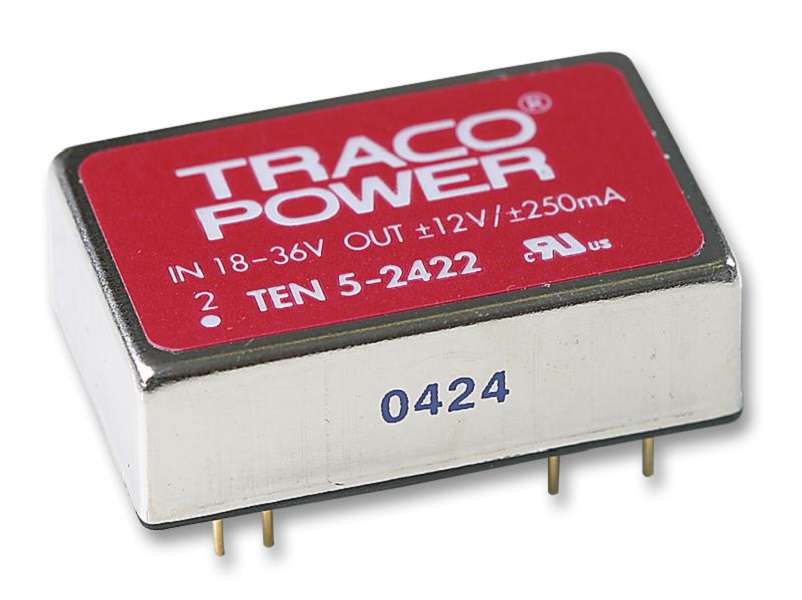

Traco Power (TEN 5-2422) Isolated Through Hole DC/DC Converter, 12V, 250mA

Isolated Through Hole DC/DC Converter, ITE, 2:1, 6 W, 2 Output, 12 V, 250 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 6WInput Ratio: 2:1Output Voltage - Output 1: 12VOutput Current - Output 1: 250mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -12VOutput Current - Output 2: 250mAIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20mmHeight: 10mmDepth: 32mmProduct Range: TEN 5 SeriesProduct OverviewThe TEN 5 series from Tracopower are isolated board mount single output DC to DCconverters. The I/O isolation of 1500VDC, conducted noise compliance to EN55022-A and FCC level A makes these converters ideal for a wide range ofapplications. TEN 5 series DC to DC converters feature very high reliability,good cost and performance ratio.6W output powerWide 2:1 input rangeHigh efficiency up to 86%Selectable output voltagesOutput current ranges from ±200mA to 1200mAExtended operating temperature range from -40°C to 85°CIndefinite short circuit protectionInput filter to meet EN 55022, class A and FCC, level A without externalcomponentsShielded metal case with insulated base plate24 pin DIP with industry standard pinoutApplicationsPower Management, Industrial
