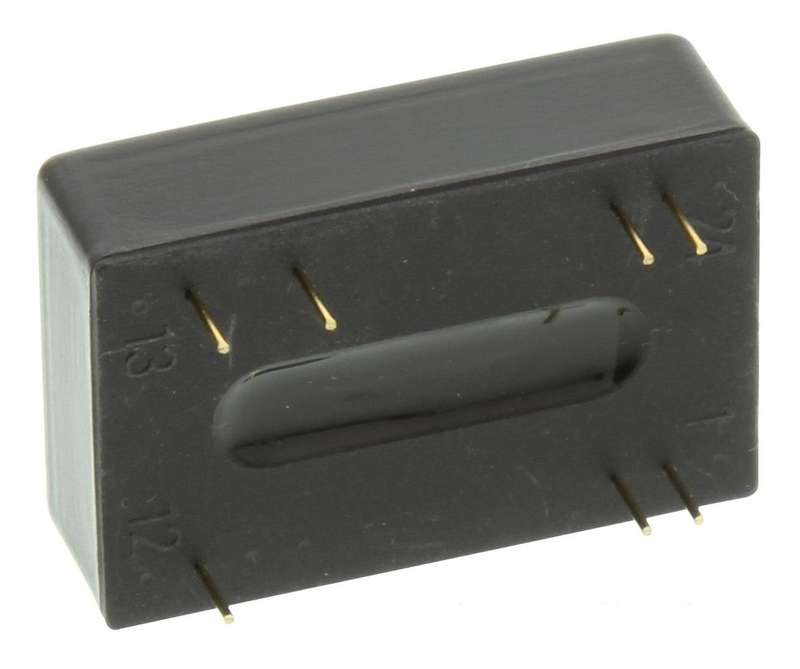

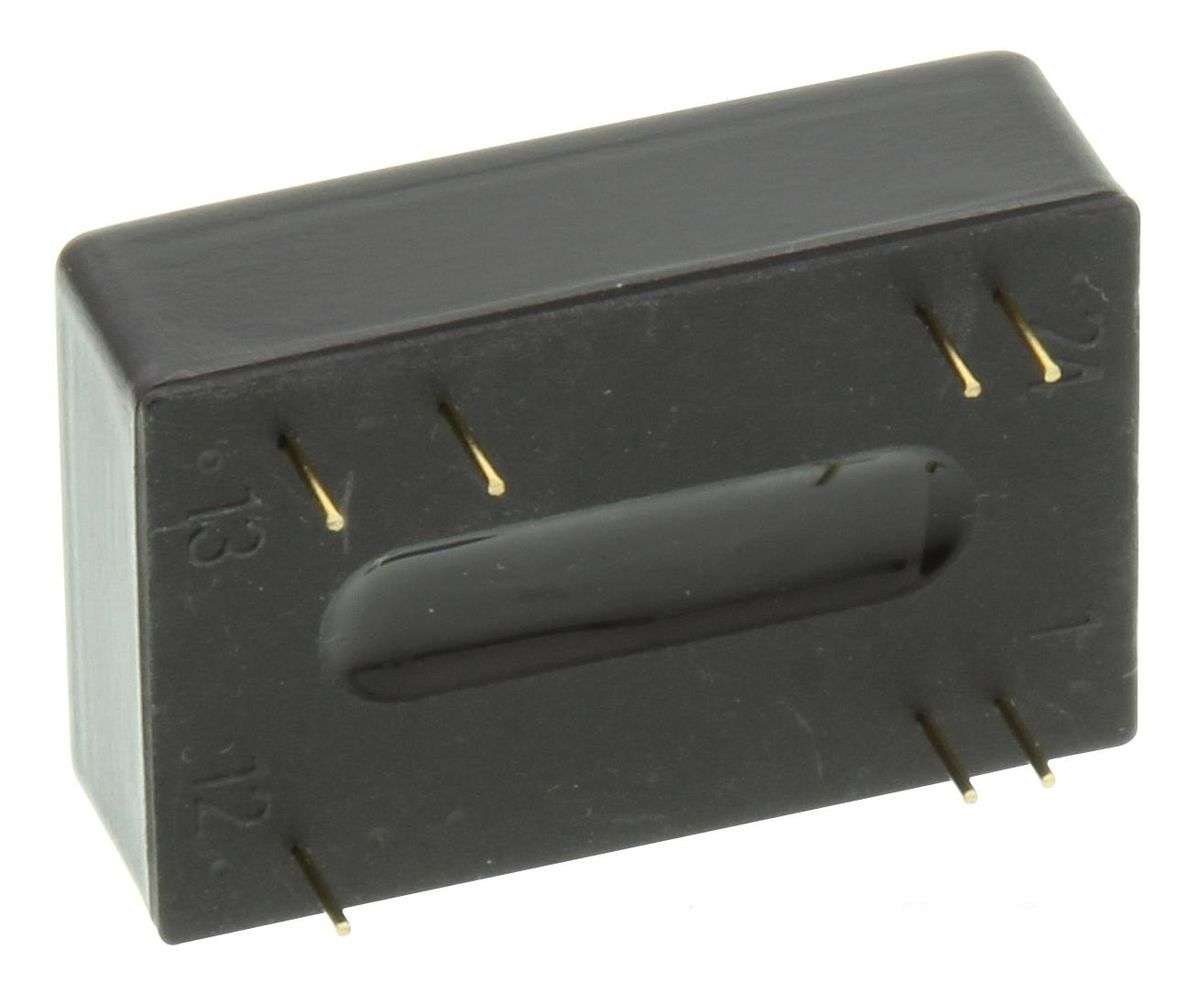

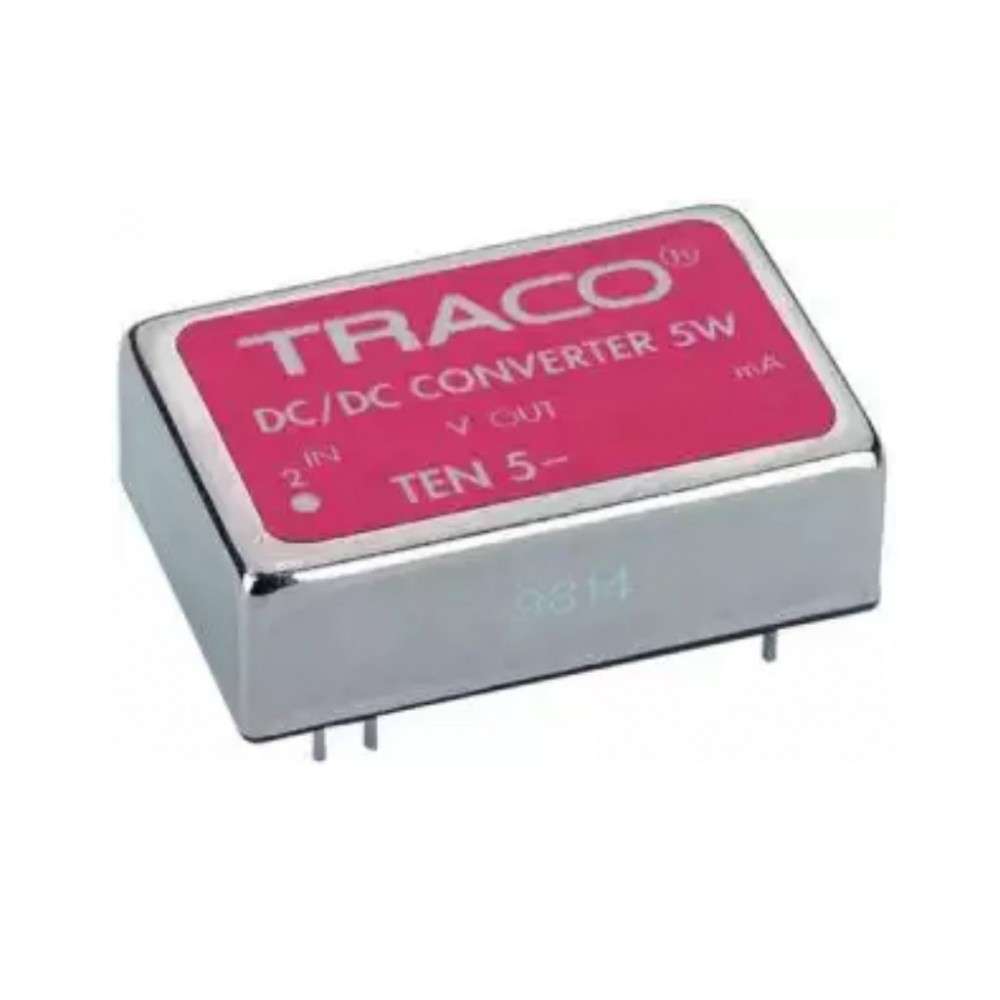

Traco Power (TEN 5-2422WI) Isolated Through Hole DC/DC Converter 12V, 250mA

Isolated Through Hole DC/DC Converter, ITE, 4:1, 5 W, 2 Output, 12 V, 250 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 5WInput Ratio: 4:1Output Voltage - Output 1: 12VOutput Current - Output 1: 250mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -12VOutput Current - Output 2: 250mAIsolation Voltage: 1.5kVInput Voltage DC Min: 9VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20.3mmHeight: 10.2mmDepth: 31.8mmProduct Range: TEN 5WI SeriesProduct OverviewThe TEN 5-2422WI is a 2-output board-mount isolated DC to DC Converter withultra wide 4:1 input range. The TEN 5WI series 6W high performance convertercomes with industry-standard footprint and high efficiency at full load. Thisconverter is ideal for applications where wide input voltage range is required.Full SMD designExcellent load and line regulationIndefinite short-circuit protection1500VDC I/O IsolationBuilt-in filter to meet EN 55022, class A and FCC, level A-40 to +85°C Extended operating temperature rangeApplicationsPower Management, Communications & Networking, Industrial
