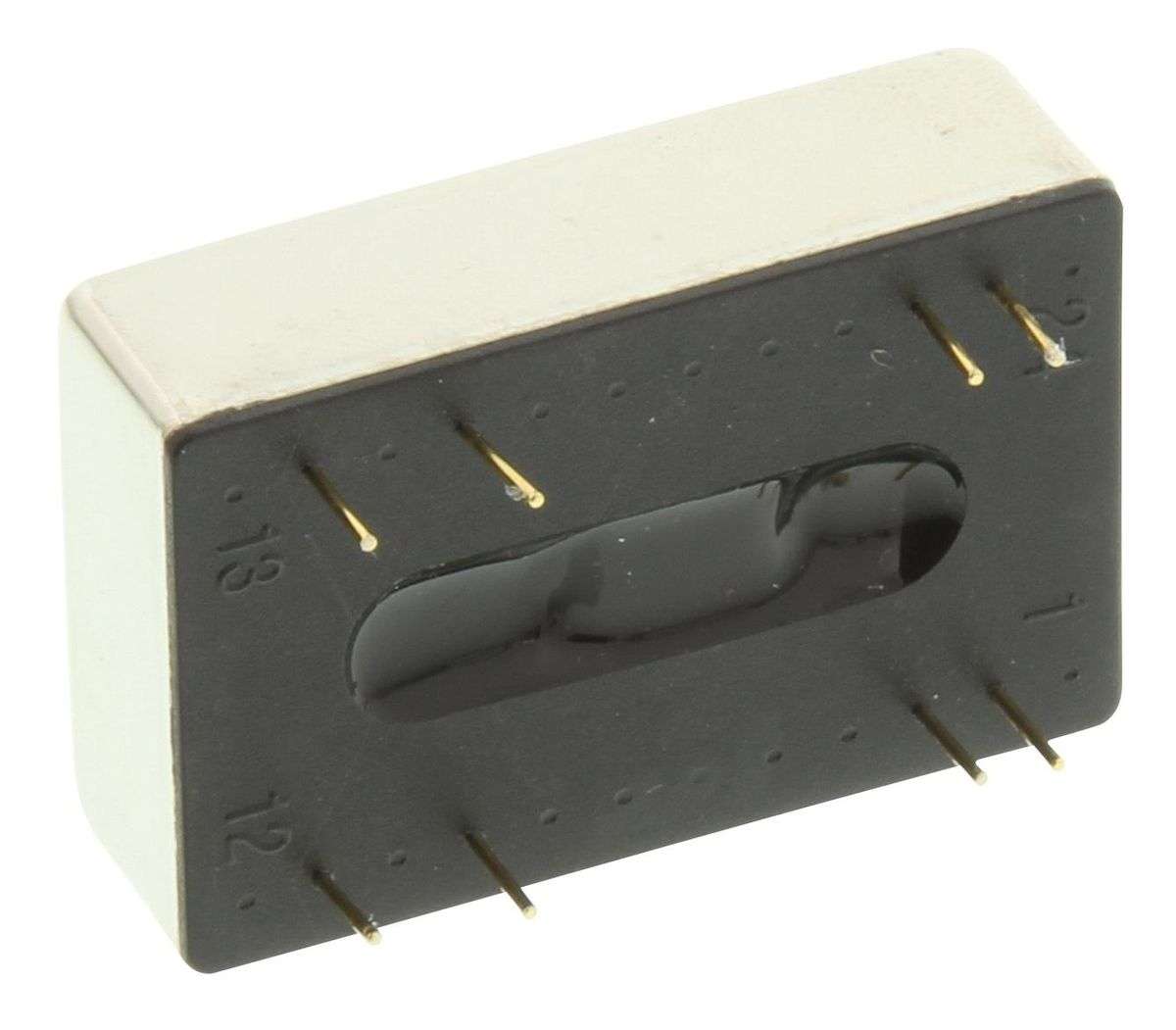

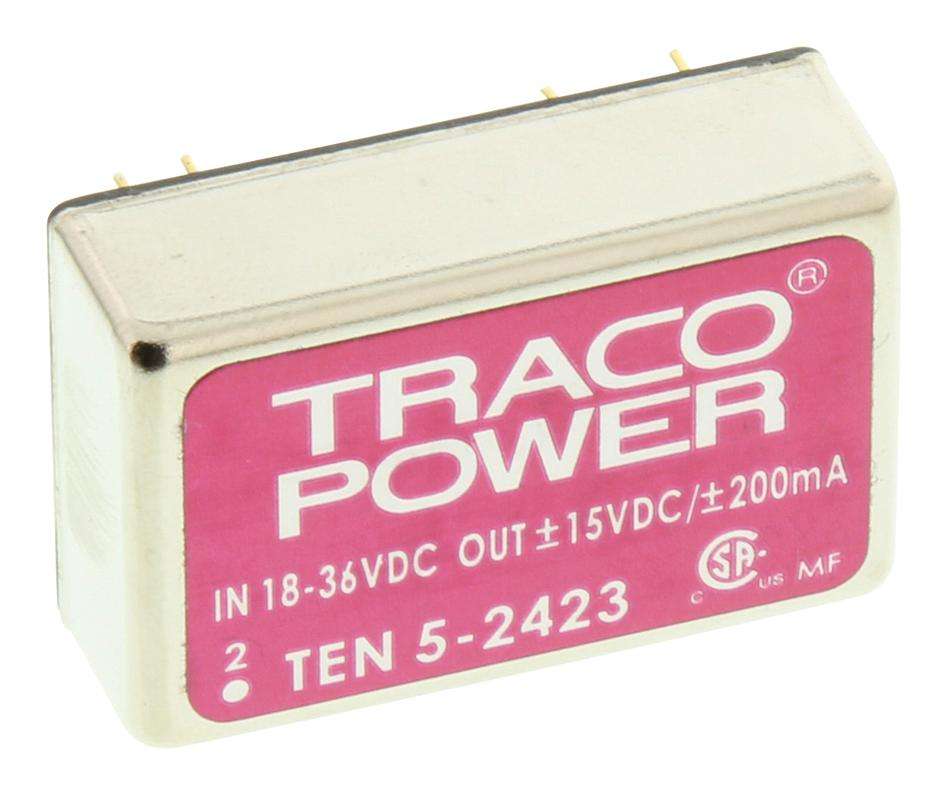

Traco Power (TEN 5-2423) Isolated Through Hole DC/DC Converter, 15V, 200mA

Isolated Through Hole DC/DC Converter, ITE, 2:1, 6 W, 2 Output, 15 V, 200 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 6WInput Ratio: 2:1Output Voltage - Output 1: 15VOutput Current - Output 1: 200mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -15VOutput Current - Output 2: 200mAIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20mmHeight: 10mmDepth: 32mmProduct Range: TEN 5 SeriesProduct OverviewTEN 5 series is a range of DC/DC-converter modules with wide input range of 2:1.State of the art SMD-technology guarantees a product with very high reliabilityand good cost /performance ratio. I/O-isolation of 1500VDC together withconducted noise compliance to EN 55022-A and FCC level A makes these convertersideal for a wide range of applications in communications, mobile battery poweredequipments and industrial systems. It has 24-pin DIP with industry standardpinout and extended operating temperature range from -40°C to 85°. Approved byUL 60950-1, IEC/EN 60950-1.Indefinite short circuit protectionInput filter to meet EN 55022, class A and FCC, level A without externalcomponentsShielded metal case with insulated baseplateHigh reliability, MTBF >1 Mio. HInput voltage range from 18 to 36VDC, output voltage is ±15VDC, output currentis ±200mAIndefinite automatic recovery short-circuit protection, efficiency is 86%Switching frequency is 300kHz typical (PFM)Steel, metal casing material, silicone potting material
