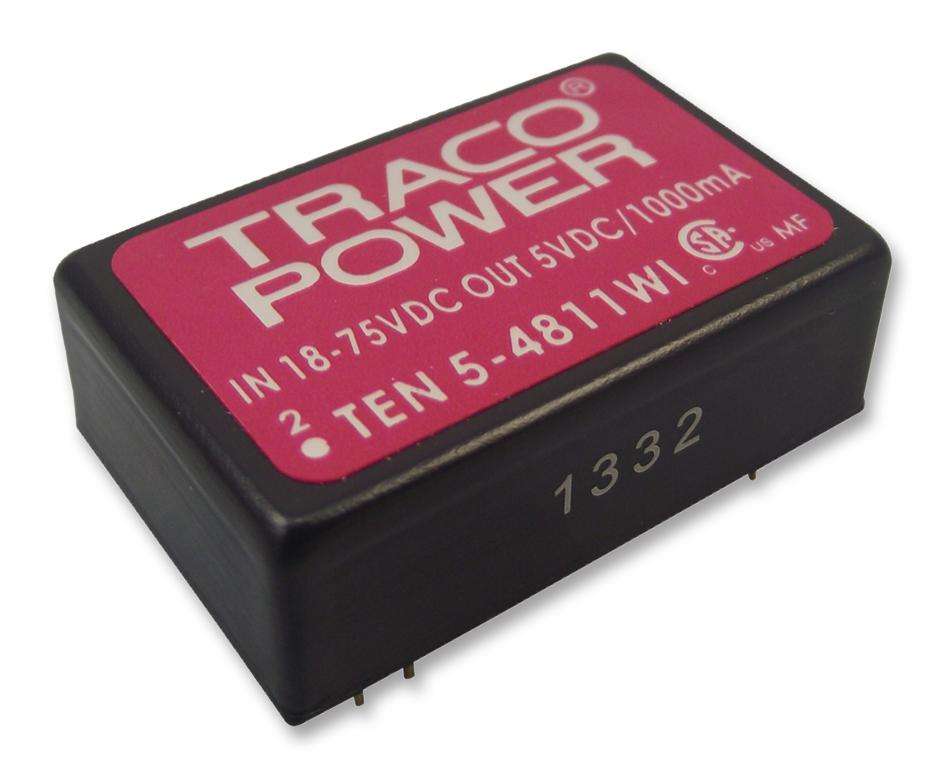

Traco Power (TEN 5-4811WI) Isolated Through Hole DC/DC Converter, 5V, 1A

Isolated Through Hole DC/DC Converter, ITE, 4:1, 5 W, 1 Output, 5 V, 1 AProduct InformationPower Supply Approvals: ITEOutput Power Max: 5WInput Ratio: 4:1Output Voltage - Output 1: 5VOutput Current - Output 1: 1ANo. of Outputs: 1 OutputIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 75VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 48VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20.3mmHeight: 10.2mmDepth: 31.8mmProduct Range: TEN 5WI SeriesProduct OverviewTEN 5WI series is a family of high-performance DC to DC converter modules with5W output power, featuring ultra-wide input voltage ranges of 18 to 75VDC. Thiscomes in a shielded DIP-24 metal package with an industry-standard footprint.High efficiency allows -40°C to +70°C operation ambient temperatures at fullload. Typical applications for these converters are battery-operated equipmentand distributed power architectures in communication, instrumentation, andindustrial electronics, everywhere where a wide input voltage range is required.Approved by cUL/UL 60950-1, IEC/EN 60950-1.Ultra wide 4:1 input rangeDIP-24 package with standard pinout, full SMD designExtended operating temperature range from -40°C to +85°C (max.)High efficiency, excellent load and line regulationIndefinite short circuit protectionInput voltage range from 18 to 75VDC, output voltage is 5VDC, current is 1000mA,efficiency is 78%Built-in filter to meet EN 55022, Class A and FCC, level A, I/O isolation is1500VDCSwitching frequency range from 290 to 450KHzBlack anodized aluminium case, non conductive FR4 baseplate material , epoxypotting material
