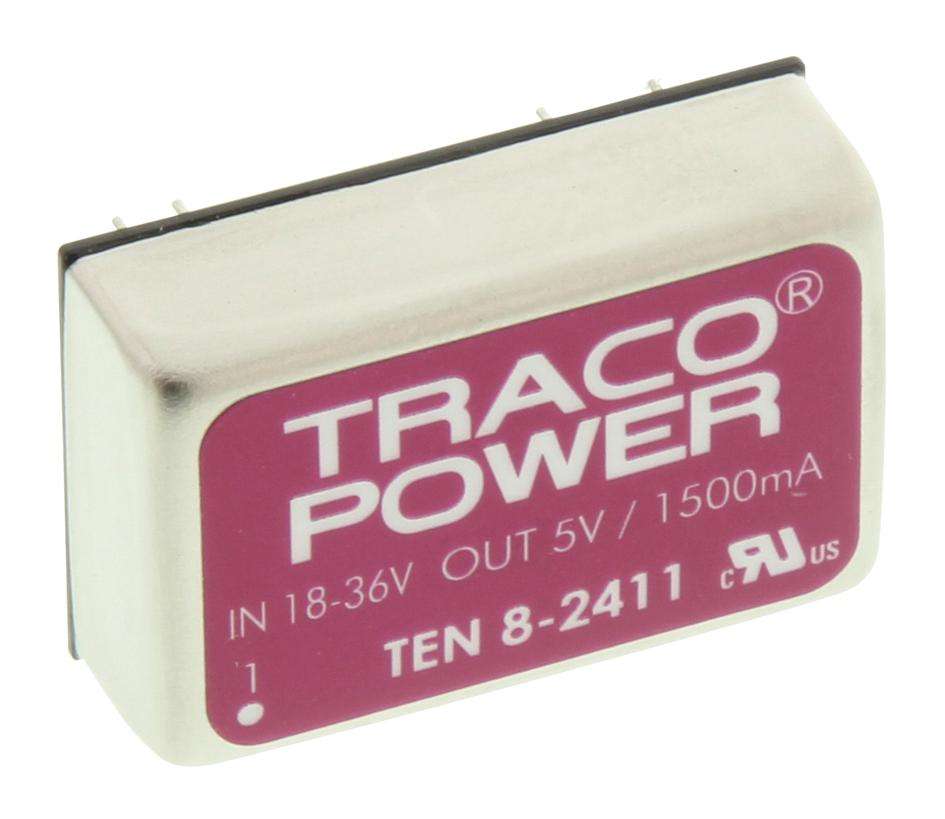

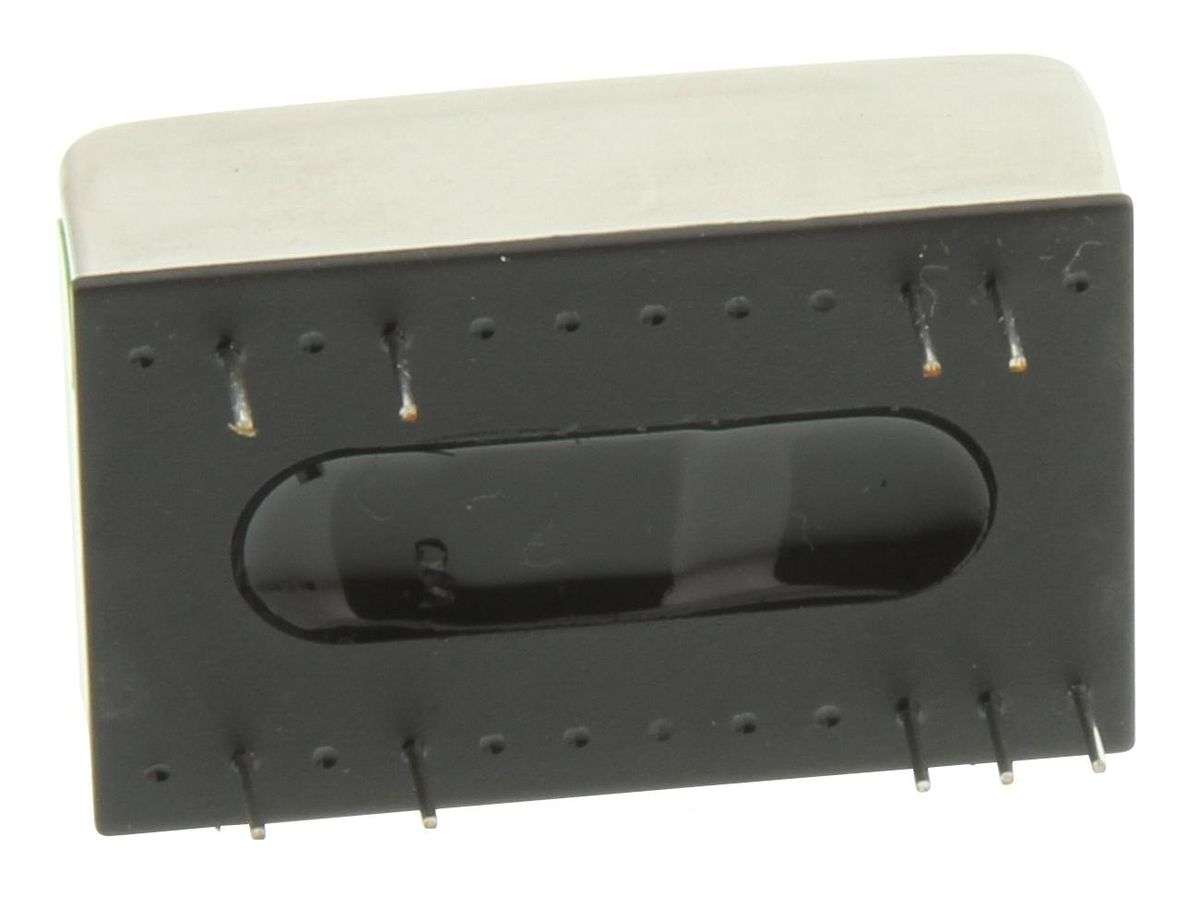

Traco Power (TEN 8-2411) Isolated Through Hole DC/DC Converter, 5V, 1.5A

Isolated Through Hole DC/DC Converter, ITE, 2:1, 8 W, 1 Output, 5 V, 1.5 AProduct InformationPower Supply Approvals: ITEOutput Power Max: 8WInput Ratio: 2:1Output Voltage - Output 1: 5VOutput Current - Output 1: 1.5ANo. of Outputs: 1 OutputIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20.3mmHeight: 10.2mmDepth: 32mmProduct Range: TEN 8 SeriesProduct OverviewThe TEN 8-2411 is a high performance 8W DC to DC converter. It features wide 2:1input voltage range in a DIP-24 package with industry standard footprint. A veryhigh efficiency allows an operating temperature range of -40°C to +85°C. Abuilt-in EMI input filter complies with EN 55022, class A without externalcomponents. Further standard features include remote On/Off and short-circuitprotection. Typical applications for this converter are battery operatedequipment, instrumentation, communication and industrial electronics, everywherewhere isolated, tightly regulated voltages are required and space is limited onthe PCB.Input range from 18VDC to 36VDC (24VDC nominal)5V output voltage, 1500mA output current, 83% efficiencyShielded metal casing with insulated baseplate300KHz typical switching frequency (PWM)Designed to meet UL/cUL 60950-1, IEC/EN 60950-1 safety approvalsApplicationsPower Management
