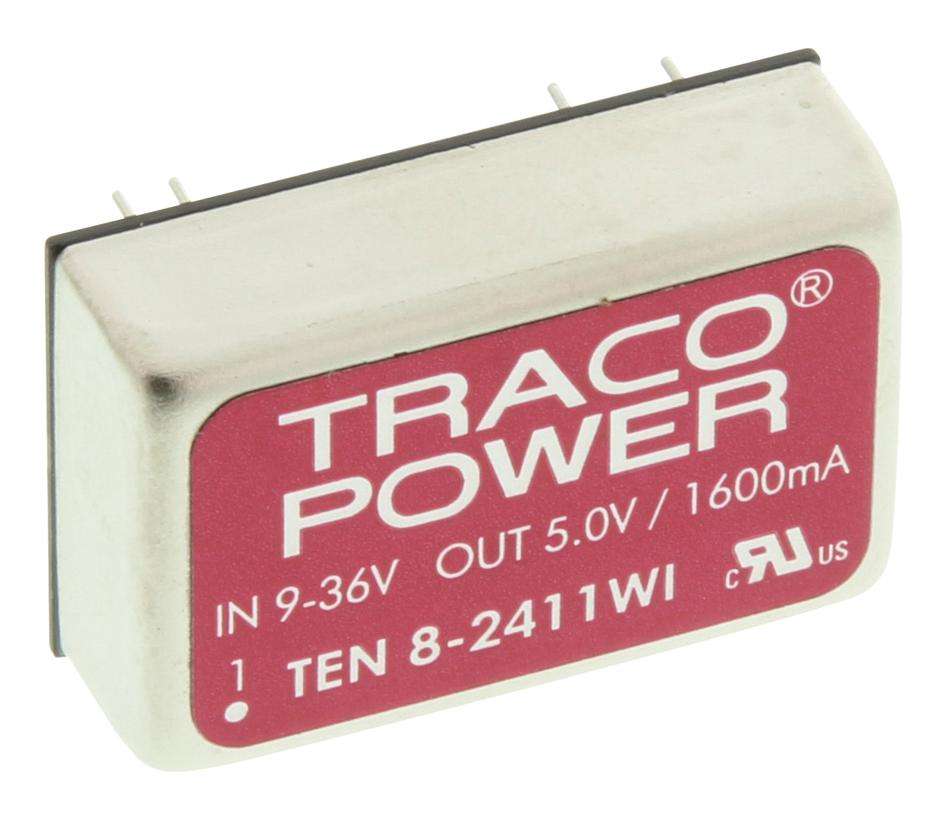

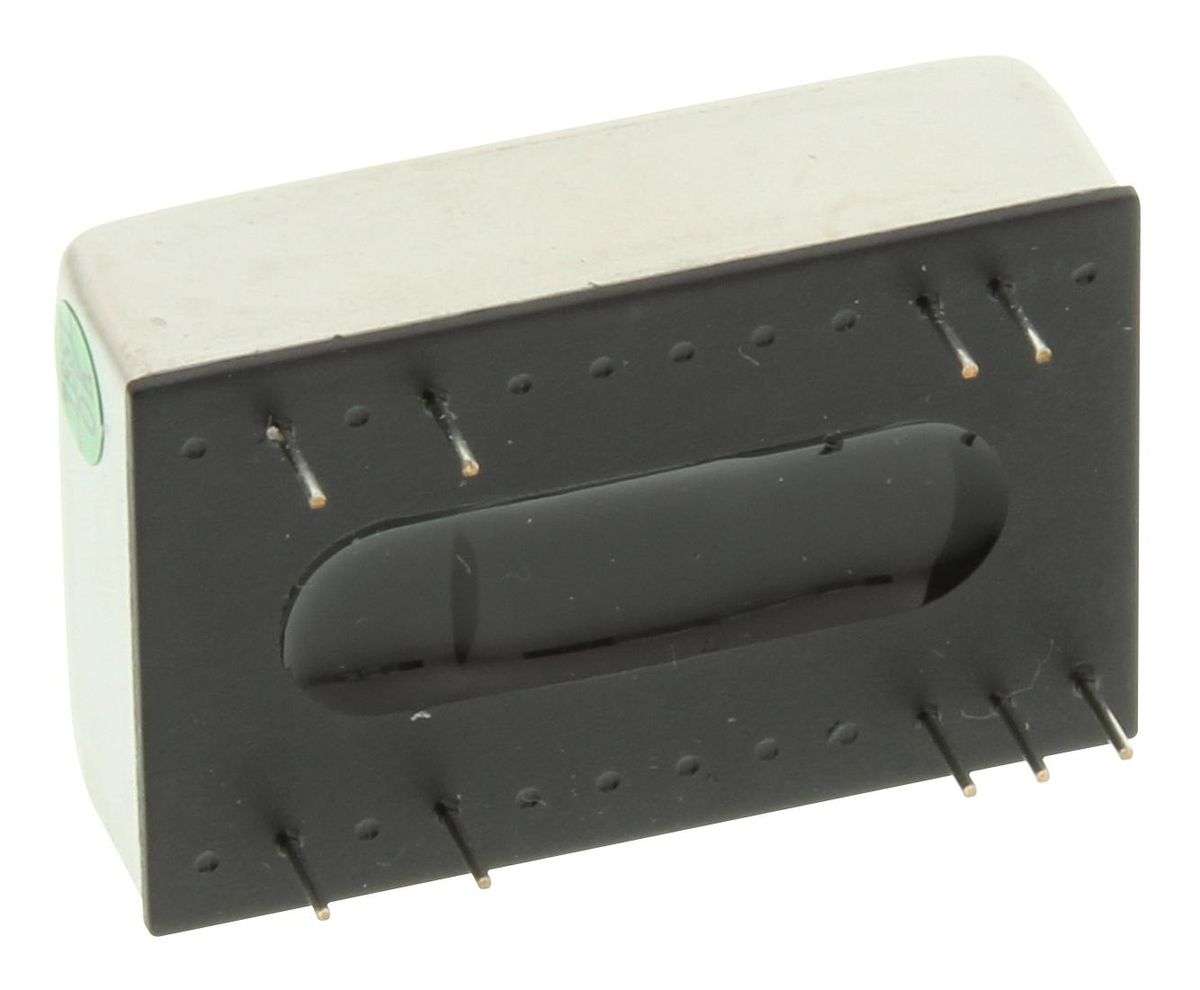

Traco Power (TEN 8-2411WI) Isolated Through Hole DC/DC Converter, 5V, 1.6A

Isolated Through Hole DC/DC Converter, ITE, 4:1, 8 W, 1 Output, 5 V, 1.6 AProduct InformationPower Supply Approvals: ITEOutput Power Max: 8WInput Ratio: 4:1Output Voltage - Output 1: 5VOutput Current - Output 1: 1.6ANo. of Outputs: 1 OutputIsolation Voltage: 1.5kVInput Voltage DC Min: 9VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 32mmHeight: 10.2mmDepth: 20mmProduct Range: TEN 8WI SeriesProduct OverviewTEN 8WI series is a family of high performance 8W dc/dc converter modulesfeaturing ultra wide 4:1 input voltage ranges in a DIP-24 package with industry-standard footprint. Input voltages up to 160VDC, excellent EMC characteristicsand EN 50155 approval make this product the best choice for many demandingapplications in railroad and transportation systems. Further standard featuresinclude remote on/off, over voltage protection, under voltage lockout and shortcircuit protection. Typical applications for these converters are also inwireless networks, telecom/datacom, industry control systems and measurementequipment. Approved by EN 62368-1, IEC 62368-1, UL 62368-1.Certified for railway applications (EN50155)Operating temperature range from -40°C to + 85°CI/O isolation is 1500VDCInput filter to meet EN 55022 class AInput voltage range from 9 to 36VDC, output voltage is 5VDC(Vnom), outputcurrent is 1600mASwitching frequency range from 270 to 330KHz (PWM), 300KHz typ (PWM), efficiencyis 87%Copper, nickel plated housing material, metal case housing typePCB mounting typeNatural convection cooling system
