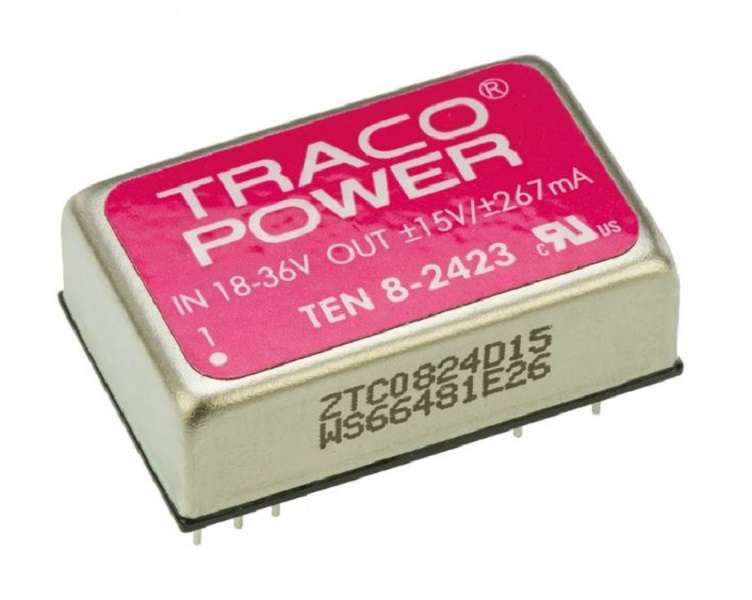

Traco Power (TEN 8-2423) Isolated Through Hole DC/DC Converter, 15V, 265mA

Traco Power (TEN 8-2423) Isolated Through Hole DC/DC Converter, 15V, 265mA

New 381 available
R1,915.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1205026
Bob Shop ID
674505049
Isolated Through Hole DC/DC Converter, ITE, 2:1, 8 W, 2 Output, 15 V, 265 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 8WInput Ratio: 2:1Output Voltage - Output 1: 15VOutput Current - Output 1: 265mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -15VOutput Current - Output 2: 265mAIsolation Voltage: 1.5kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: DIPDC / DC Converter Mounting: Through HoleWidth: 20.3mmHeight: 10.2mmDepth: 32mmProduct Range: TEN 8 SeriesProduct OverviewThe TEN 8-2423 is a 2-output board-mount isolated DC to DC Converter withtightly regulated output voltage and wide 2:1 input voltage range. The TEN 8series 8W high performance converter comes with industry standard footprint andshort-circuit protection. This converter is ideal for applications which requireisolated, tightly regulated voltages and space is limited on the PCB.High efficiency up to 85%Input filter meets EN 55022, class ARemote on/offShielded metal casing with insulated baseplate-40 to +85°C Extended operating temperature rangeApplicationsPower Management
