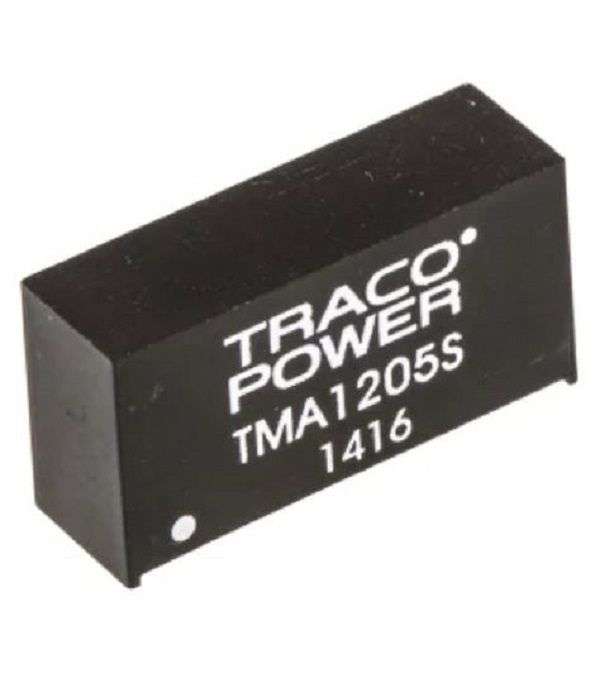

Traco Power (TMA 1205S) Isolated Through Hole DC/DC Converter, Output 12V

Isolated Through Hole DC/DC Converter, ITE, 1:1, 1 W, 1 Output, 5 V, 200 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 1WInput Ratio: 1:1Output Voltage - Output 1: 5VOutput Current - Output 1: 200mANo. of Outputs: 1 OutputOutput Regulation: UnregulatedIsolation Voltage: 1.5kVInput Voltage DC Min: 10.8VInput Voltage DC Max: 13.2VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 12VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 6.1mmHeight: 10.2mmDepth: 19.5mmProduct Range: TMA SeriesProduct OverviewThe TMA 1205S is a 1-output board-mount Isolated DC/DC Converter. A highefficiency allows a wide operating temperature range of -40 to +85°C. Itrequires only 1.2cm² board space and is an ideal solution in many space criticalapplications for board level power distribution. The use of SMD technology makesit possible to offer a high performance converter.73% Efficiency1000VDC I/O isolation±0.02%/K Temperature coefficient220µF Maximum capacitive load100kHz Switching frequency100% Burn-in (8 hour)ApplicationsPower Management
