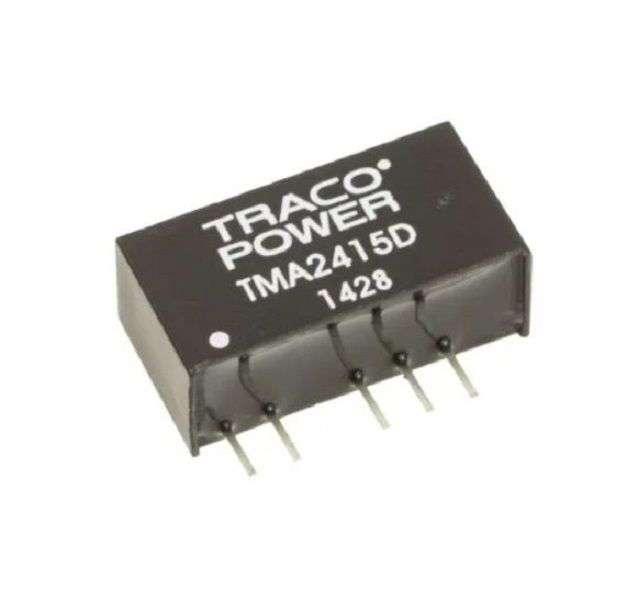

Traco Power (TMA 2415D) Isolated Through Hole DC/DC Converter, Output 15V

Isolated Through Hole DC/DC Converter, ITE, 1:1, 1 W, 2 Output, 15 V, 35 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 1WInput Ratio: 1:1Output Voltage - Output 1: 15VOutput Current - Output 1: 35mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -15VOutput Current - Output 2: 35mAOutput Regulation: UnregulatedIsolation Voltage: 1.5kVInput Voltage DC Min: 21.6VInput Voltage DC Max: 26.4VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 6.1mmHeight: 10.2mmDepth: 19.5mmProduct Range: TMA SeriesProduct OverviewThe TMA 2415D is a 2-output 1W board-mount isolated DC to DC Converter thatoffer the ideal solution in many space critical applications for board levelpower distribution. The use of SMD technology makes it possible to offer aproduct with high performance at low cost.1000VDC IsolationHigh efficiency up to 81%Industry standard pinout100% Burn-in (8h)-40 to +85°C Operating temperature rangeApplicationsPower Management
