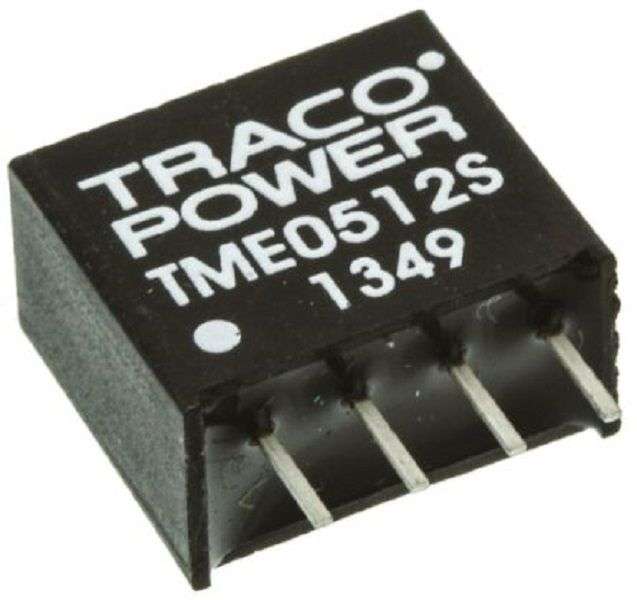

Traco Power (TME 0512S) Isolated Through Hole DC/DC Converter, Miniature

Isolated Through Hole DC/DC Converter, Miniature, ITE, 1:1, 1 W, 1 Output, 12 V,80 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 1WInput Ratio: 1:1Output Voltage - Output 1: 12VOutput Current - Output 1: 80mANo. of Outputs: 1 OutputOutput Regulation: UnregulatedIsolation Voltage: 1kVInput Voltage DC Min: 4.5VInput Voltage DC Max: 5.5VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 5VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 6.1mmHeight: 10.2mmDepth: 11.5mmProduct Range: TME SeriesProduct OverviewTME series is a 1W sub-miniature, isolated DC/DC-converters in a SIP-package,which requires only 0.7cm² of board space. It provide a cost effective solutionto generate supplementary, isolated voltages. Full SMD-design and a 100%production test of parameters ensure a high reliability of this product.Unregulated outputsI/O isolation voltage is 1000VDCOperating temperature range from -40°C to +85°C3-year product warrantyInput voltage range from 4.5 to 5.5VDC, output voltage is 12VDC(Vnom), outputcurrent is 84mAShort circuit protection, efficiency is 77%Natural convection cooling systemSwitching frequency range from 50 to 110kHz (PFM), 90kHz typ. (PFM)Non-conductive plastic housing and base material, epoxy potting materialPlastic case housing type, PCB mounting type
