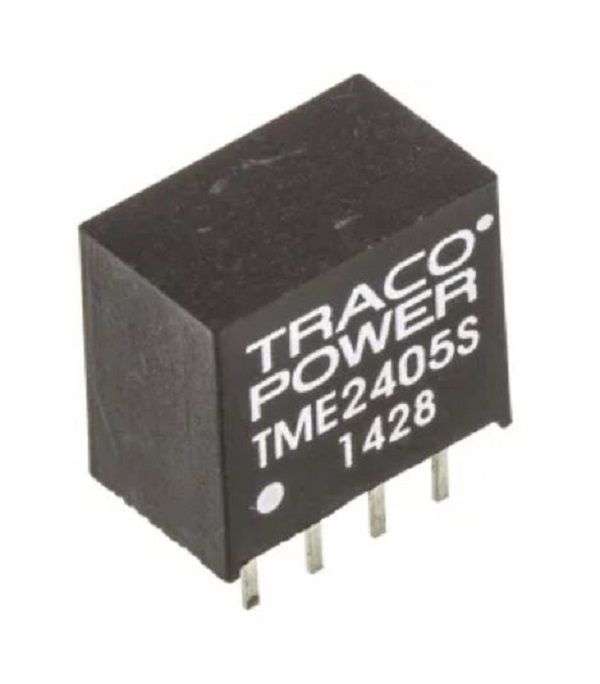

Traco Power (TME 2405S) Isolated Through Hole DC/DC Converter, Output 5V

Isolated Through Hole DC/DC Converter, Miniature, ITE, 1:1, 1 W, 1 Output, 5 V,200 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 1WInput Ratio: 1:1Output Voltage - Output 1: 5VOutput Current - Output 1: 200mANo. of Outputs: 1 OutputOutput Regulation: UnregulatedIsolation Voltage: 1kVInput Voltage DC Min: 21.6VInput Voltage DC Max: 26.4VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 7.1mmHeight: 10.2mmDepth: 11.5mmProduct Range: TME SeriesProduct OverviewThe TME 2405S from Tracopower is a single output, subminiature, isolated, 1W DCto DC converter in SIP package. It requires only 0.7cm² board and ideal solutionin many space critical applications for board level power distribution.Input voltage is 24VDCOutput voltage is 5VDCOutput current is 200mATypical efficiency is 70%I/O isolation is 1KVDCOperating temperature range from -40°C to 85°CIndustry standard pin-out configurationDimension is 11.5mm x 10.2mm x 6.1mm (D x H x W)ApplicationsIndustrial, Power Management
