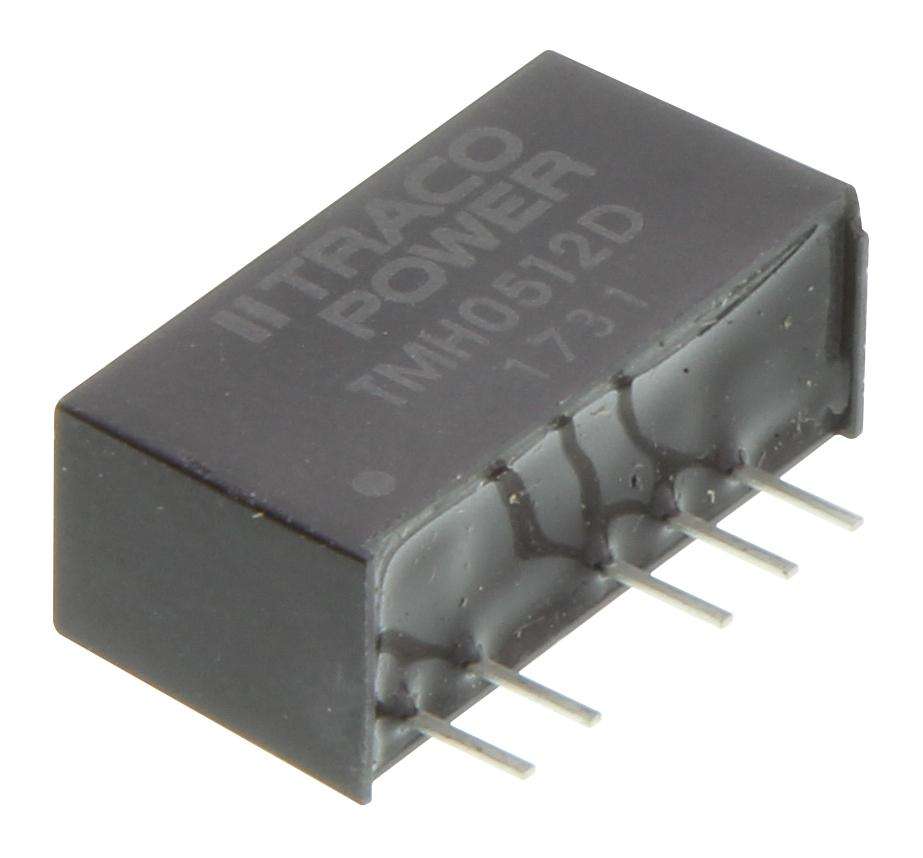

Traco Power (TMH 0512D) Isolated Through Hole DC/DC Converter, 12V, 80mA

Traco Power (TMH 0512D) Isolated Through Hole DC/DC Converter, 12V, 80mA

New 394 available
R525.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1007556
Bob Shop ID
674511037
Isolated Through Hole DC/DC Converter, Ultraminiature, ITE, 1:1, 2 W, 2 Output,12 V, 80 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 2WInput Ratio: 1:1Output Voltage - Output 1: 12VOutput Current - Output 1: 80mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -12VOutput Current - Output 2: 80mAOutput Regulation: UnregulatedIsolation Voltage: 1kVInput Voltage DC Min: 4.5VInput Voltage DC Max: 5.5VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 5VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 7.5mmHeight: 10.2mmDepth: 19.5mmProduct Range: TMH SeriesProduct OverviewThe TMH 0512D is a 2-output 2W board-mount isolated DC to DC Converter thatoffer the ideal solution in many space critical applications for board levelpower distribution. The use of SMD-technology makes it possible to offer aproduct with high performance at low cost.Fully SMD design1000VDC I/O IsolationHigh efficiency up to 83%Industry standard pinout100% Burn-in (8h)-40 to +85°C Operating temperature rangeApplicationsPower Management
