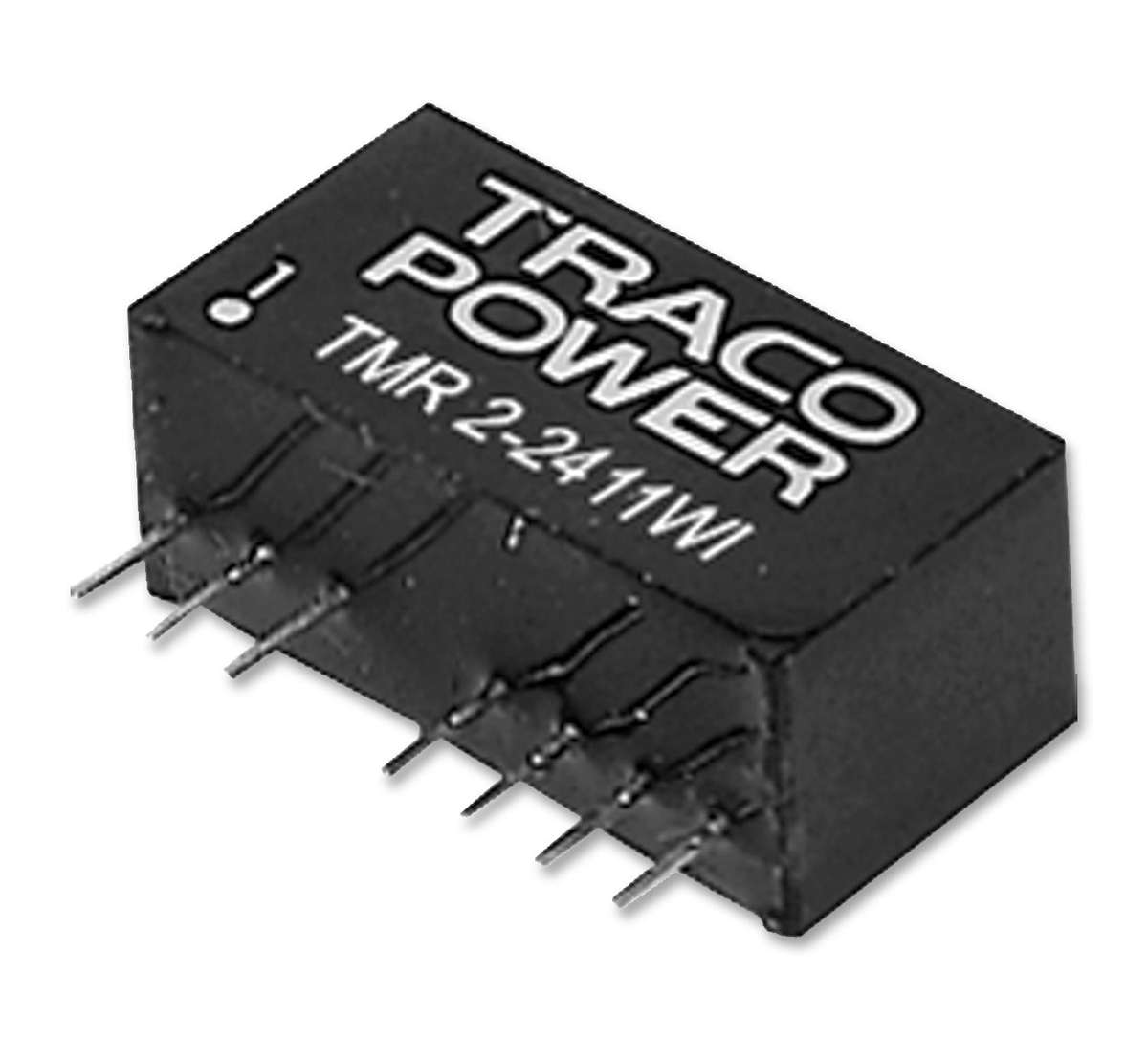

Traco Power (TMR 2-2411WI) Isolated Through Hole DC/DC Converter, 4:1 Input

Isolated Through Hole DC/DC Converter, 4:1 Input, ITE, 4:1, 2 W, 1 Output, 5 V,400 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 2WInput Ratio: 4:1Output Voltage - Output 1: 5VOutput Current - Output 1: 400mANo. of Outputs: 1 OutputOutput Regulation: RegulatedIsolation Voltage: 1.6kVInput Voltage DC Min: 9VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 9.3mmHeight: 12.5mmDepth: 26mmProduct Range: TMR 2WI SeriesProduct OverviewTMR 2-2411WI is TMR 2WI series new family of isolated 2W DC/DC converter moduleswith regulated output, featuring ultra-wide 4:1. This product comes in anultra-compact SIP-9 plastic package. It has excellent efficiency of up to 84%allows -40°C to +85°C operation temperatures at full load. Further featuresinclude remote On/Off control and continuous short circuit protection. Itincludes typical applications for these ultra-compact converters arebattery-operated equipment and distributed power architectures in communication,instrumentation, and industrial electronics, everywhere where space on the PCBis critical. Approved by designed for EN 62368-1, EN 55032 class A , EN 55032class A.Input voltage from 9 to 36VDC, output voltage is 5VDC, output current is 400mA,efficiency is 76%Switching frequency range from 100 to 650kHZ/300(typ)High efficiency, excellent load and line regulationI/O isolation is 1500VDC3-year product warrantyNon-conductive plastic housing material, epoxy potting materialPlastic case housing mount, PCB mounting typeNatural convection cooling system
