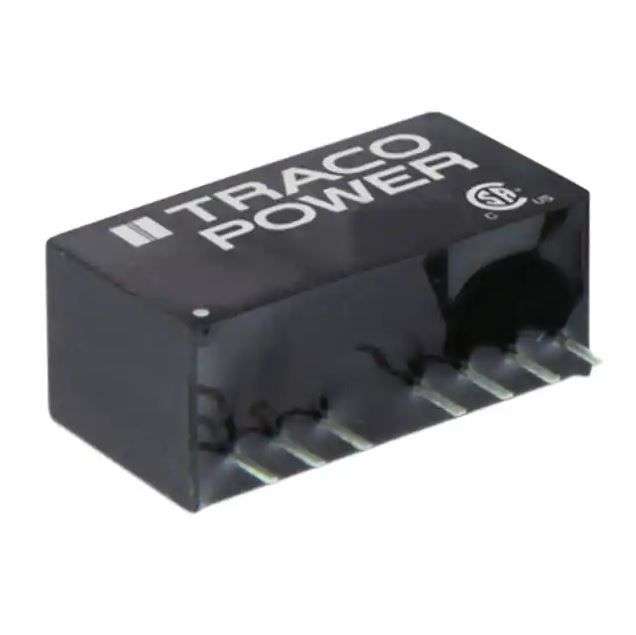

Traco Power (TMR 2411) Isolated Through Hole DC/DC Converter, 5V, 400mA

Traco Power (TMR 2411) Isolated Through Hole DC/DC Converter, 5V, 400mA

New 2016 available
R999.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1205068
Bob Shop ID
645122242
Isolated Through Hole DC/DC Converter, ITE, 2:1, 2 W, 1 Output, 5 V, 400 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 2WInput Ratio: 2:1Output Voltage - Output 1: 5VOutput Current - Output 1: 400mANo. of Outputs: 1 OutputOutput Regulation: RegulatedIsolation Voltage: 1.6kVInput Voltage DC Min: 18VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 9.2mmHeight: 11.1mmDepth: 21.8mmProduct Range: TMR 2 SeriesProduct OverviewTMR 2 series is a family of isolated 2W DC/DC converter modules with regulatedoutput, featuring wide 2:1 input voltage ranges. The product comes in a compactSIP-8 plastic package with small footprint occupying only 2.0cm² (0.3squareinch) of board space. An excellent efficiency allows -40° to +85°C operationtemperatures. Further features include remote on/off control and continuousshort circuit protection. The ultra-compact dimensions of these converters makethem an ideal solution for many space critical applications in communicationequipment, instrumentation and industrial electronics.High efficiencyExcellent load and line regulationIndefinite short-circuit protectionI/O isolation of 1600VDC3-year product warrantyEN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safetystandardsPollution degree PD 2, natural convection (20 LFM) coolingSwitching frequency of 100KHz to 650KHz (RCC)Non-conductive plastic (UL 94 V-0 rated) housing, silicone (UL 94 V-0 rated)potting materialPCB mount, THD (through-hole device) connection type
