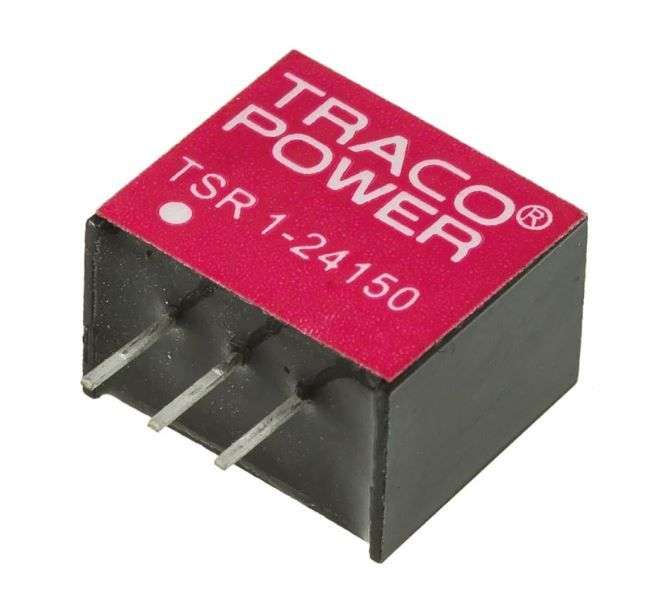

Traco Power (TSR 1-24150) DC/DC Converter, ITE, 1 Output, 15 W, 15 V, 1 A

Product InformationPower Supply Approvals: ITEOutput Power Max: 15WNo. of Outputs: 1 OutputOutput Voltage Nom.: 15VOutput Current Max: 1ADC / DC Converter Output Type: FixedProduct Range: TSR 1 SeriesInput Voltage DC Min: 18VDC / DC Converter Mounting: Through HoleInput Voltage DC Max: 36VProduct OverviewThe TSR 1 series from Tracopower are non isolated step down switching regulatorsin SIP package. These DC to DC converters are drop-in replacement forinefficient 78xx linear regulators. A high efficiency up to 96% allows full loadoperation up to 60°C ambient temperature without need of any heat sink or forcedcooling. The TSR 1 switching regulators provide many significant features overlinear regulators, such as better output accuracy (±2%), lower standby currentof 2mA and no requirement of external capacitors. The high efficiency and lowstandby power consumption makes these regulators an ideal solution for manybattery powered applications.Output voltage range from 1.2VDC to 15VDCMaximum output current is 1ASwitching frequency is 500KHzPin compatible with LMxx linear regulatorsSIP package fits existing TO-220 footprintBuilt-in filter capacitorsOperation temperature range from -40°C to 85°CShort circuit protectionWide input operating range from 4.6VDC to 36VDCExcellent line and load regulationApplicationsPower Management, Industrial
