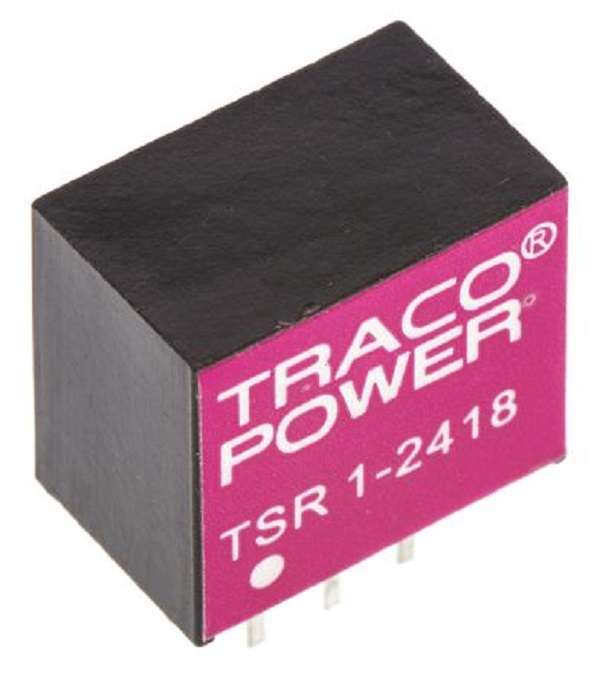

Traco Power (TSR 1-2418) DC/DC Converter, 1.8 W, 1.8 V, 1 A

Product InformationPower Supply Approvals: ITEOutput Power Max: 1.8WNo. of Outputs: 1 OutputOutput Voltage Nom.: 1.8VOutput Current Max: 1ADC / DC Converter Output Type: FixedProduct Range: TSR 1 SeriesInput Voltage DC Min: 4.6VDC / DC Converter Mounting: Through HoleInput Voltage DC Max: 36VProduct OverviewThe TSR 1-2418 is a 1-output 1.8W through-hole-mount non-isolated step-downSwitching Regulator for inefficient 78xx linear regulators. A high efficiency upto 96% allows full load operation up to +60°C ambient temperature without theneed of any heat-sink or forced cooling. The TSR-1 drop-in replacement switchingregulator provide other significant features over linear regulators, i.e. betteroutput accuracy (±2%), lower standby current of 2mA and no requirement ofexternal capacitors. The high efficiency and low standby power consumption makesthese regulators an ideal solution for many battery powered applications.High performanceNo heat-sink requiredLow standby currentShort circuit protectionLow output ripple and noiseBuilt-in filter capacitorsExcellent line/load regulationApplicationsSignal Processing, Power Management
