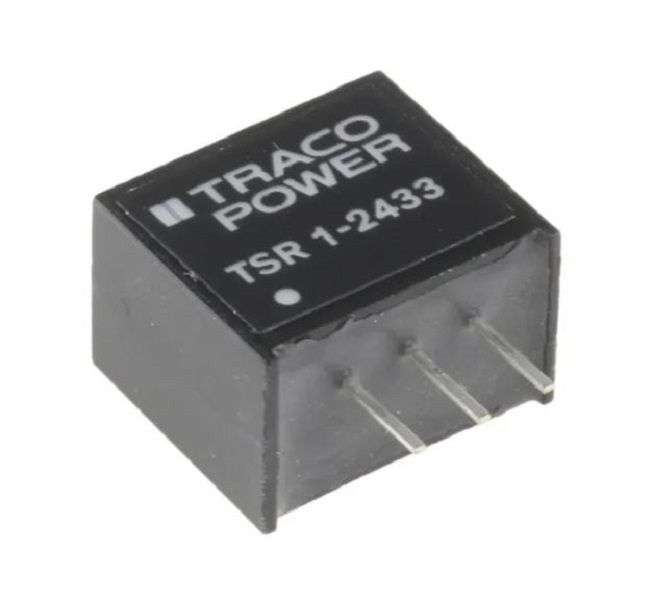

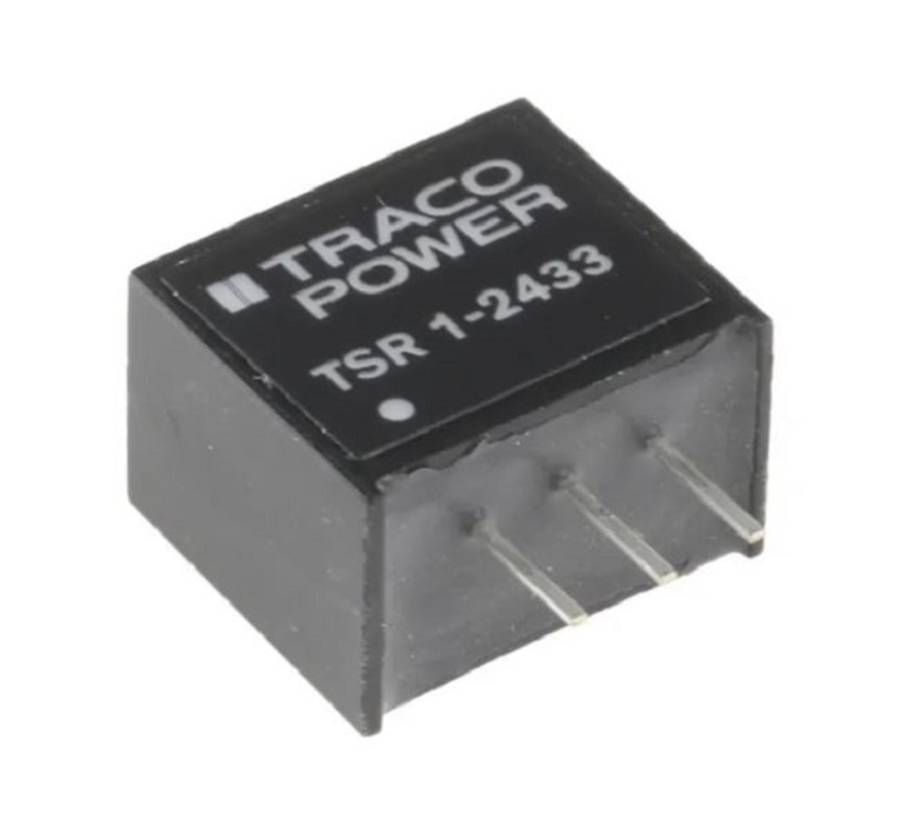

Traco Power (TSR 1-2433) DC/DC Converter, 3.3 W, 3.3 V, 1 A

Product InformationPower Supply Approvals: ITEOutput Power Max: 3.3WNo. of Outputs: 1 OutputOutput Voltage Nom.: 3.3VOutput Current Max: 1ADC / DC Converter Output Type: FixedProduct Range: TSR 1 SeriesInput Voltage DC Min: 4.75VDC / DC Converter Mounting: Through HoleInput Voltage DC Max: 36VProduct OverviewTSR 1 series step-down switching regulators are drop-in replacement forinefficient 78xx linear regulators. A high efficiency allows full load operationup to +60°C ambient temperature without the need of any heat-sink or forcedcooling. The TSR 1 switching regulators provide other significant features overlinear regulators, i.e. better output accuracy (±2%), lower standby current of 2mA and no requirement of external capacitors. The high efficiency and lowstandby power consumption makes these regulators an ideal solution for manybattery powered applications.Pin compatible with LMxx linear regulatorsSIP package fits existing TO-220 footprintBuilt in filter capacitorsOperation temperature range from -40°C to +85°CContinuous, automatic recovery short circuit protectionWide input operating rangeExcellent line / load regulation, low standby currentNatural convection (20 LFM) cooling, switching frequency of 400 to 600KHz(500KHz typ (PWM))Non-conductive plastic (UL 94 V-0 rated) housing, silicone (UL 94 V-0 rated)potting material
