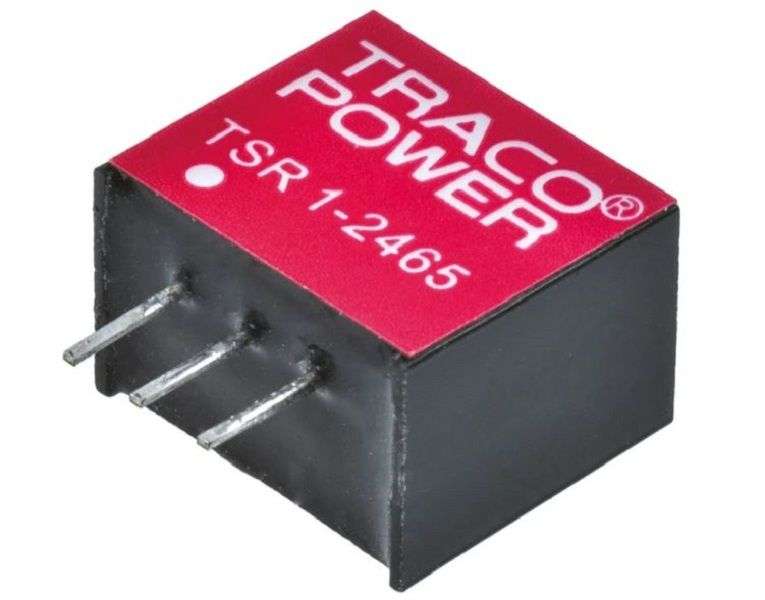

Traco Power (TSR 1-2465) DC/DC Converter, 6.5 W, 6.5 V, 1 A

Product InformationPower Supply Approvals: ITEOutput Power Max: 6.5WNo. of Outputs: 1 OutputOutput Voltage Nom.: 6.5VOutput Current Max: 1ADC / DC Converter Output Type: FixedProduct Range: TSR 1 SeriesInput Voltage DC Min: 9VDC / DC Converter Mounting: Through HoleInput Voltage DC Max: 36VProduct OverviewThe TSR 1-2465 is a 1-output non-isolated PoL DC/DC Converter with 6.5W outputpower. It is drop-in replacement for inefficient 78xx linear regulators. A highefficiency allows full load operation up to +60°C ambient temperature withoutthe need of any heat-sink or forced cooling. It provides better output accuracy(±2 %), lower standby current of 2mA and no requirement of external capacitors.Excellent line/load regulationShort-circuit protection±0.015%/K Temperature coefficient470µF Maximum capacitive load500kHz Switching frequencyBuilt-in filter capacitorsApplicationsIndustrial
