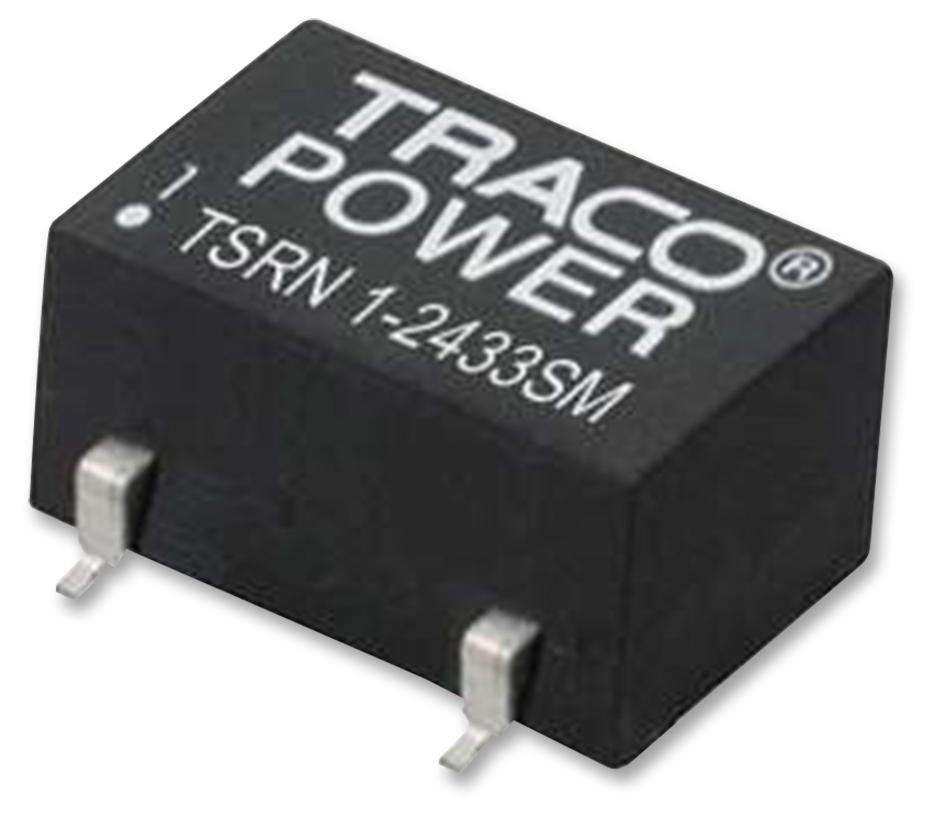

Traco Power (TSRN 1-2433SM) DC/DC Converter, Compact, 3.3 W, 3.3 V, 1 A

Product InformationPower Supply Approvals: ITEOutput Voltage Min: 1.5VNo. of Outputs: 1 OutputOutput Voltage Max: 5.5VOutput Power Max: 3.3WOutput Current Max: 1AOutput Voltage Nom.: 3.3VDC / DC Converter Output Type: AdjustableProduct Range: TSRN 1SM SeriesInput Voltage DC Min: 4.6VDC / DC Converter Mounting: Surface Mount DeviceInput Voltage DC Max: 42VProduct OverviewThe TSRN 1-2433SM is a Non-isolated Switching Regulator with wide input voltagerange. The TSRN-1SM series step-down non-isolated switching regulator is anideal solution to replace inefficient linear regulators. The TSRN-1 switchingregulator provide other significant features over linear regulators, i.e. betteroutput accuracy (±2%), lower standby current of ~4mA and no requirement ofexternal capacitors. They are suitable for positive or negative output circuitsand offer a trim input for output voltage adjustment. The high efficiency andlow standby power consumption make this regulator an ideal solution for energysensitive applications.Adjustable output voltageRemote on/off inputBuilt-in filter capacitorsNo heat-sink requiredOver-temperature protectionShort-circuit protectionExcellent line/load regulation-40 to +85°C Operating temperature rangeApplicationsPower Management
