Device description:
They are easy to operate and completely portable, which makes working with them a lot more practical and convenient.
Test the electrical light circuits of your vehicle, caravan, or trailer separately and independently.
Include a fully explanatory guide and videos on how to carry out the tests correctly.
It is made of high-quality materials, but if something breaks, it can be repaired or replaced.
Certain tasks that previously required the assistance of another person are no longer necessary.
Test truck trailers, light vehicle trailers, interlink trailers' and caravans' electrical tow plugs (round 7-pin), wiring, and lights.
Tests are carried out through toggle switches.
Testing circuits are protected by a standard automotive blade fuse (7.5 A). The fuse holder is situated next to the trailer socket on the tester.
A built-in 12-volt, 7.2-Ah FORBATT battery is ready for use. Just make sure the battery is always charged, whether you're at the workshop or the job site. Additionally, a fully automatic charger is included. Connect the charger after your workday is finished so that it can recharge over night for the following day.
The tester can operate using external 12 or 24-volt DC power.
Fuse-protected output terminals (12/24 V) are situated on the tester's side.
Side handle for easy carrying.
Testing features:
Check the wiring circuit standard (SABS).
Check the auxiliary wire connection.
Test 12-volt and 24-volt standard light globes.
Test 12-volt and 24-volt LED lights.
Test the stop light wiring and light bulbs, or LEDs.
Test the left-hand tail light wiring and light bulbs, or LEDs.
Test the right-hand tail light wiring and light bulbs, or LEDs.
Test the left-hand indicator wiring and light bulbs, or LEDs.
Test the right-hand indicator wiring and light bulbs, or LEDs.
Perform a load test on the earth/ground wire.
Earth/ground wire test: the tester will immediately indicate when there is no earth/ground connection. It will also show a swapped earth/ground wire between light circuits or on the auxiliary circuit.
Short circuit test: the easily replaceable fuse on the tester will blow when a short circuit occurs on wires, globes, globe fittings, and damaged plugs or sockets. Refer to the user guide to learn how to safely and adequately test for shorts using this tester.

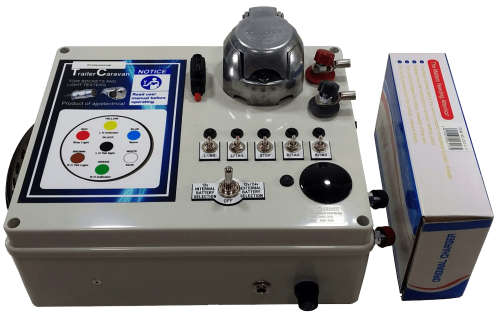

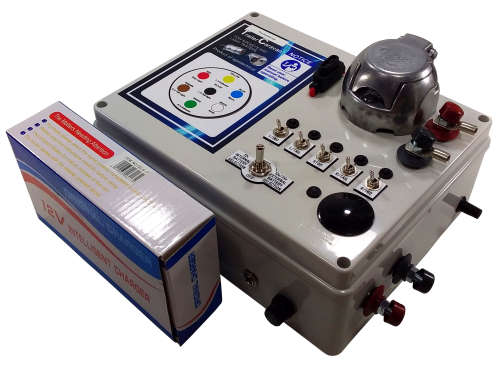

What's in the box: Professional trailer light tester
Rechargeable battery FORBATT 12 V, 7.2 AH
Fully automatic charger (12 V, 7 A)
Fuses 7.5 ampere
Fuses 10 ampere
Quick guide
Other information about the device: Length: 269 mm
Width: 212 mm
Height: 141 mm
Weight: 3.7 kg
Power input voltage: 12 VDC or 24 VDC
Power output voltage: 12 VDC or 24 VDC
Current output maximum: 20 A
NOTE:
With LED technology, twenty-four-volt power is no longer necessary to test the lights of the truck trailer unless the trailer still uses twenty-four-volt globes. These LED lights are multi-voltage, which means they are compatible with twelve-volt (12 V) and twenty-four-volt (24 V).
