Features

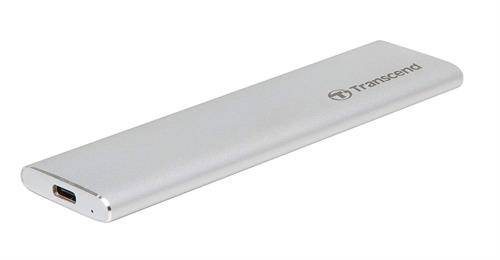

M.2 SSD Enclosure KitTranscend's CM42 and CM80 are enclosures in different form factors designed specifically for M.2 SATA SSDs. By following the step-by-step installation guide, you can transform an M.2 SATA SSD into a portable USB 3.1 Gen 1 external drive, maximizing utilization.
Sleek, pocketable design
Transcend's M.2 SSD enclosure features a lightweight aluminum construction, making it both portable and durable while you are on the move. A LED indicator lets you know when the drive is in use.
USB Type-A and Type-C supported
To accommodate devices with different USB ports, the M.2 SSD enclosure is engineered to convert to a USB Type-C port, offering flexibility of being used on different platforms with either
USB Type-A or Type-C port.
Enhanced performance with UASP
The M.2 SSD enclosure uses the USB 3.1 Gen 1 interface incorporated with UASP (USB Attached SCSI Protocol) that makes transfer speeds faster than with a sole USB 3.0 interface when used with a UASP-enabled host computer.
Two form factors
To be compatible with the most common M.2 SATA solid state drives, Transcend offers two enclosures in different form factors for multiple drive heights. The CM42 enclosure is for type 2242 only, whereas the CM80 can mount type 2242, 2260, and 2280.

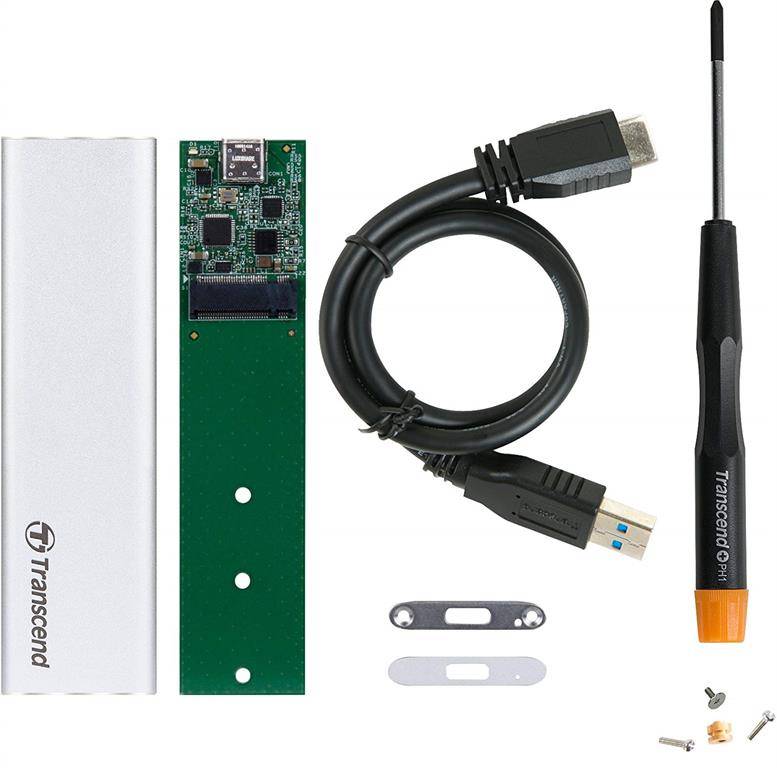

All-inclusive package
Inside you'll find:
• 1 M.2 SSD enclosure (CM42 or CM80)
• 1 M.2 adapter
• 1 Type-C to Type-A USB cable (45cm)
• 1 metal plate
• 1 aluminum sticker
• 1 screwdriver
• 3 mounting screws
• 1 copper nut (CM80 only)
Specications:
• Product Code: TS-CM80S
• Description: Transcend M.2 SSD USB-C Enclosure Kit
Interface
• USB Type: USB Type C to USB Type A
• Connection Interface: USB 3.1 Gen 1
• Bus Interface: SATA III 6Gb/s
Operating Environment
• Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
• Storage Temperature: -40°C (-40°F) ~ 85°C (185°F)
• Operating Voltage: 5V
• Note: The M.2 SSD Enclosure Kit is not compatible with PCI-Express M.2 SSDs.
