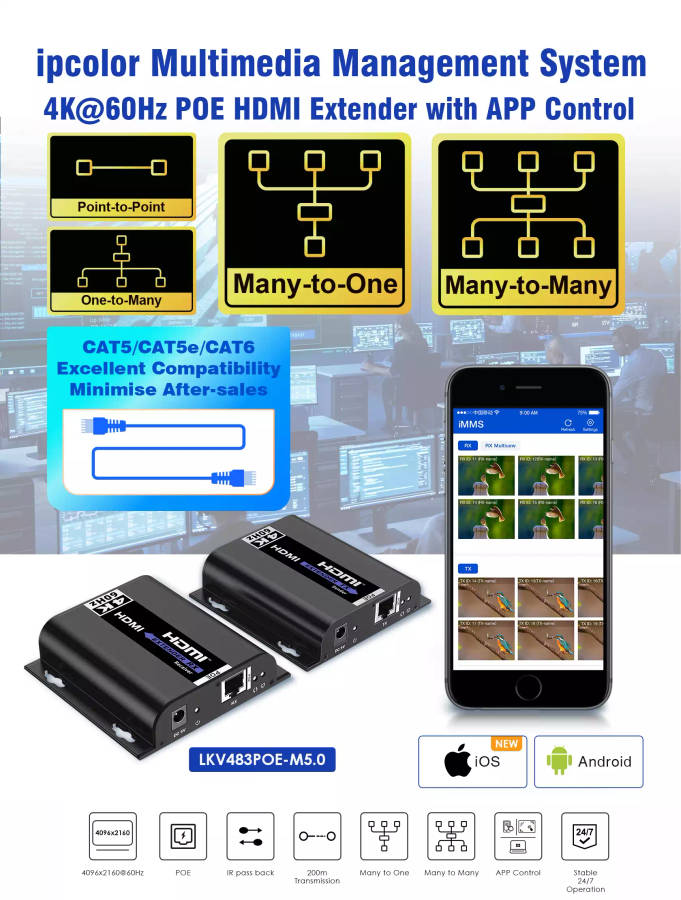

Extend and distribute ultra-high-definition HDMI signals across your existing network infrastructure with the LKV483POE-M5.0-TX HDMI over IP Transmitter. Designed for professional AV installations, digital signage, control rooms, security monitoring, education, and commercial environments, this advanced HDBitT transmitter delivers crystal-clear 4K@60Hz HDMI video, bi-directional IR control, and Power over Ethernet (PoE) support for simplified deployment.
Using standard CAT5e/CAT6 network cabling and Gigabit network switches, the transmitter can extend HDMI signals up to 200 meters while supporting flexible one-to-one, one-to-many, many-to-one, and many-to-many matrix configurations. The built-in HDMI over IP technology enables scalable AV distribution across large networks, making it ideal for multi-display installations and centralized content management.
Key Features:
Applications:
Technical Specifications:
Package Includes:
| LKV483POE-M5.0 Specification | ||
| Item | Transmitter(Tx) | Receiver(Rx) |
| Video | ||
| Input interface | 1x HDMI | 1x RJ45 |
| Output interface | 1x RJ45 | 1x HDMI |
| HDMI length | 5m | 5m |
| Maximum transfer rate | 18Gbps | |
| Compatibility | HDMI 2.0 | |
| HDCP 1.4/HDCP 2.2 | ||
| Resolutions | 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600 | |

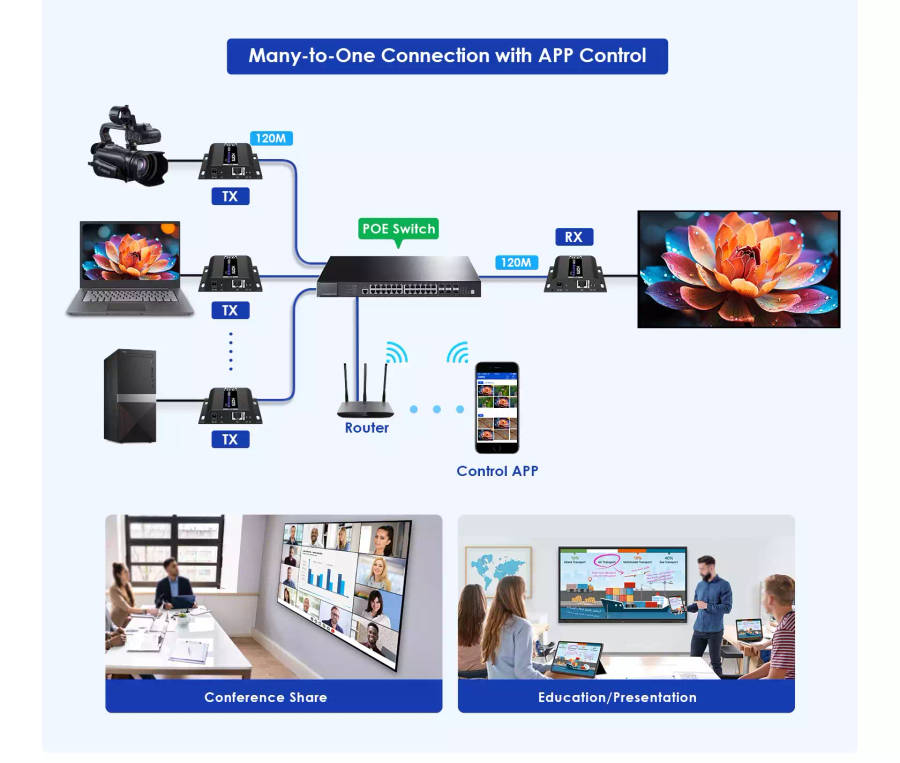

| Connection types | One-to-one connection One-to-many connection Many-to-one connection Many-to-many connection Switch cascading | |
| Transmission distance | CAT5 80m / CAT5E 100m / CAT6 120m | |
| Transmission latency | 1080P: 80~130ms 4K@60Hz: 150~220ms | |
| Audio Signal | ||
| Input interface | 1x HDMI | 1x RJ45 |
| Output interface | 1x RJ45 | 1x HDMI |
| HDMI output | LPCM 2.0 | |
| Command Signal | ||
| IR interface | 1x 3.5mm IR OUT | 1x 3.5mm IR IN |
| IR receiving range | 5m | |
| Infrared frequency | 20kHz~60kHz | |
| Power | ||
| Power Supply | DC 5V/1A (alternative) | DC 5V/1A (alternative) |
| Power Consumption | TX< 3.5W | RX<2.5W |
| POE input | Support IEEE802.3af | |
| Operating Environment | ||
| Working temperature | - 20~60 | |
| Storage temperature | - 30~70 | |
| Humidity | 0~90%RH (no condensation） | |
| Physical Properties | ||
| Housing | Aluminium | |
| Weight | 156g | 170g |
| Color | Black | |
| Dimensions | 96.8(L)*94(W)*23.7(H)mm | |
| Protection | ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 | |
