Specifications:

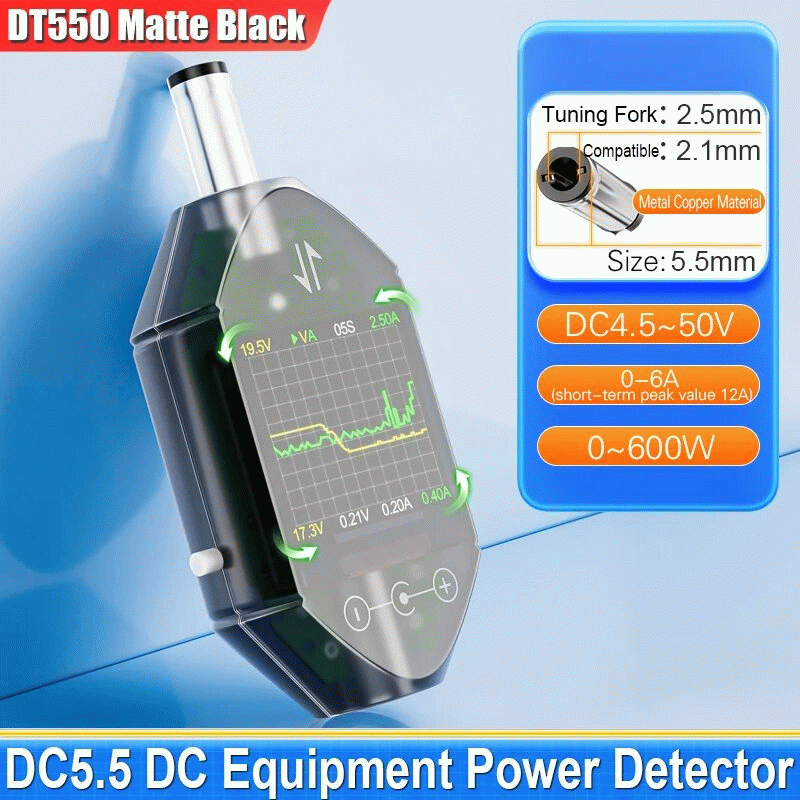

Model: DT550
Color: Frosted Transparent/Transparent black (optional)
Working Voltage: DC4.5-50V
Working Current: 0-6A (short-term peak value 12A)
Power Range: 0-600W
Energy Range: 0—9999999Wh
Capacity Range: 0—9999999mAh
Sampling Resistance: 0.001
Power Consumption: <0.5W
Operating Temperature: -45°C to 55°C (32°F to 113°F)
Data Retention Period: 20 years, TA=55°C
Connector Type: DC5.5x2.5, compatible with 2.1mm
Product Dimensions: 58mm x 26mm x 16mm
Features:
1. Wide Voltage and Current Compatibility
Handles DC4.5-50V voltage and up to 6A continuous current, with peak support of 12A. Ideal for various DC-powered devices, ensuring accurate readings across a broad range of applications.
2. High Precision Measurements
Equipped with 0.001 sampling resistance for reliable and detailed power, current, voltage, and capacity monitoring, making it suitable for high-accuracy demands.
3. Extended Data Retention
Stores data for up to 20 years at a temperature of up to 55°C, enabling consistent, long-term performance and dependable capacity tracking for energy devices.
4. Compact and User-Friendly Design
The 58mm x 26mm x 16mm size is small enough to integrate seamlessly into compact setups, while its intuitive interface ensures ease of use for beginners and professionals alike.
5. Real-Time Graphical Display
High-quality display with dynamic real-time power charts visualizes voltage, current, and power changes at a glance, simplifying performance analysis.
Package Included:
1 x DT550 Voltage Current Tester
