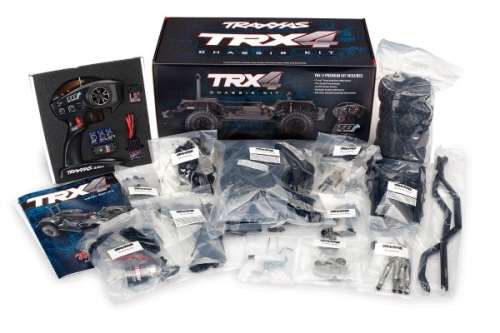

The Traxxas TRX-4 Scale and Trail Crawler set the standard for off-road versatility with its radical design and rugged durability. The new TRX-4 chassis kit combines the same innovative features as the RTR vehicle with the fun and excitement of building your own kit. Build your own portal axles, high/low range transmission, and remotely locking differentials. All the parts are organized neatly in labeled bags with waterproof electronics and pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road. Easy to Follow Assembly Instructions The TRX-4 Chassis Kit isn’t just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and on the trail with the new TRX-4 Chassis Kit. TRX-4 Technology and Innovation-Now Available as a Kit!
WHAT'S INCLUDED IN THE KIT WHAT YOU'LL NEED TRX-4 CHASSIS KIT (#82016-4) SPECS Length: 20.57 inches (523mm) Front Track: 9.78 inches (249mm) Rear Track: 9.78 inches (249mm) Ground Clearance: 3.14 inches (80mm) Weight: 6.42lb (2.91kg) Height: 10.47 inches (266mm) Wheelbase: 12.28 inches (312mm) Front Shock Length: 3.54 inches (90mm) Rear Shock Length: 3.54 inches (90mm) Approach Angle: 63.82° Departure Angle: 43.22° Breakover Angle: 58.93° Front Wheels: 1.9 x 1.02 inches (49 x 26mm) Rear Wheels: 1.9 x 1.02 inches (49 x 26mm) Front Tires: 4.64 x 1.89 inches (118 x 48mm) Rear Tires: 4.64 x 1.89 inches (118 x 48mm) Wheel Hex: 12mm Speed Control: XL-5™ HV Motor (electric): Titan® 21T Reverse Rotation Differential Type: 4 Gear, Remote Locking Transmission: 2-speed Hi-Lo, Remote Shifting Gear Pitch: 32 Chassis
Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers Brake Type: Electronic “Hill Hold” Drive System: Shaft-Driven 4WD Steering: Chassis Mounted 2075X Metal Gear Servo Radio System: TQi™ 2.4 GHz 4-Channel Transmitter with #6533 Receiver Skill Level: 2 Battery Tray: 158.75 L x 47 W x 23/26mm H
