Trend IQView 4,3` Touchscreen Interface

Trend IQView 4,3" Touchscreen Interface

for IQ4 Controller

Model:  IQVIEW-4-S

Brand new in box

The IQVIEW Single Controller Display (SCD) for IQ4 provides an interface to an IQ4 controller. It enables the user to view and adjust operating times, monitor alarms, adjust controller parameters, and display graphs of logged data. It comprises two parts, Application & Display.

The application provides all the functionality and is hosted in an IQ4 controller. It is accessed using a web browser from an IQVIEW-4-S Display, or 3rd party display over Ethernet.

The Display accesses the application over Ethernet. You can use either the IQVIEW-4-S Display available with a licence for the application or you can use a 3rd Party display


IQVIEW SCD for IQ4 Application

Viewing of inputs, outputs, directories, alarms, plots
Adjustment of knobs, switches, time zones, and time
Graphing of logged data
Security features to restrict access

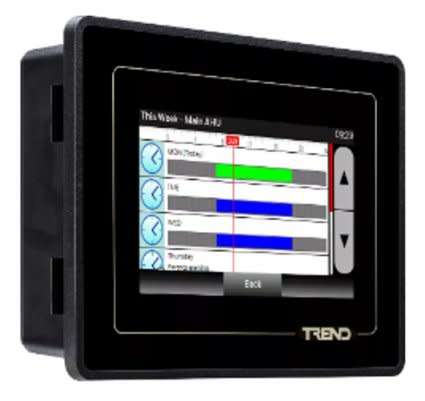

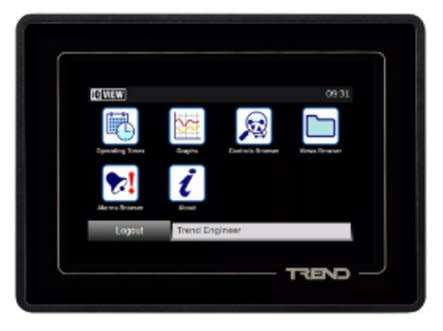

Accessed using web browser over Ethernet IQVIEW-4-S Display
Panel or wall mounting
4.3 / 480x272 / WVGA 16:9 display
Dimmable LED backlight.
Resistive touchscreen
Integrated Ethernet interface IP66 rating from front
24 Vdc SELV (safety extra low voltage) operation
Washable front panel
