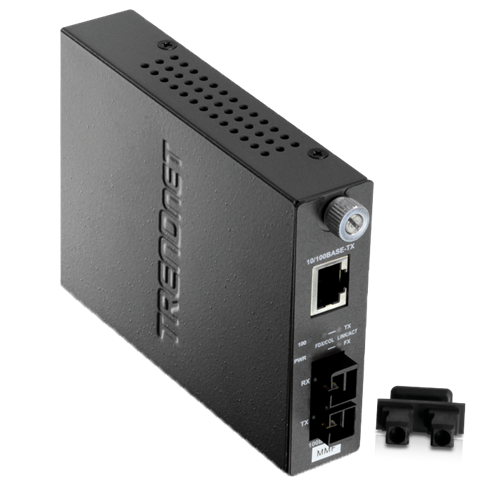

The TFC-110MSC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
Features:
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
1 x 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
Auto MDIX for 10/100Base-TX port
1 x 100Mbps fiber port with multi-mode SC-type connector
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Dip-switch for full and half duplex selection on fiber port
Wall mountable
Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
SC-type multi-mode fiber port connects over distances of up to 2km (1.2 miles)
10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
Functions as a stand alone converter or with the TFC-1600 fiber chassis
Specifications:
Product Code: TEG-MGBSX
Descriptions: TrendNet SFP Multi-Mode LC Module (550m)
Standard: IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size: Standard Ethernet up to 1518bytes
Network Media: 100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m: 100Base-FX: Multi-mode fiber optic cable 50/125 µm or 62.5/125 µm, up to 2km
Protocol: CSMA/CD
Ports
1 x 10/100Base-TX
1 x 100Base-FX (SC-type)
Dip Switch: FX: duplex mode (half/full)
Transfer Rate
100Mbps (half-duplex)
200Mbps (full-duplex)
Diagnostic LED
Per unit: Power
Per Port: link/activity, full-duplex/collision, speed (on fiber port)
Power Adapter: 5V DC, 1A external power adapter
Power Consumption: 1.8 Watts (max)
Media: MMF
Wavelength: 1300nm
Pout (dBm): -19 ~ +14
Sensitivity: -32 ~ 14
Power: 13
Distance: 2km
Package contents
TFC-110MSC
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A)
