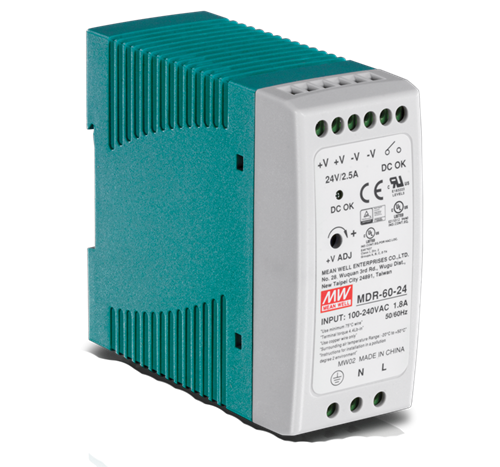

TRENDnet's 60 W Single Output Industrial DIN-Rail Power Supply, model TI-M6024 (Mean Well MDR-60-24), supplies up to 60 Watts of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with an integrated DIN-rail mount and overload current protection.
60 Watt Power Overload Protection Overload/short circuit/over voltage protection Full Load Test This power supply undergoes a 100 % full load burn-in test Passive Cooling Cooling by free air convection DIN-Rail Mount Metal enclosure with integrated DIN-rail mount Extreme Temperatures Rated for an operating temperature range of -20 to 70 C (-4 to 158 F) Safety Certifications Certified for UL 508, UL 60950-1, TUV EN60950-1, and Class I, Div. 2 Group A, B, C, D hazardous locations T4 Electro Magnetic Emission/Immunity Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, and criteria A Vibration Resistant Rated for vibration (IEC 60068-2-6) LED Indicator LED indicator confirms power to the unit |
Specifications Product Code: TI-M6024 Interface Input: 100-240 V AC, 50/60 Hz, 1.8 A 120-370 V DC Output: 60 Watts, 24 V, 2.5 A DIN rail: TS-35/7.5 or 15 Housing Metal case DIN-rail mount LED indicator confirms power to the unit Special Features DC OK relay contact Short circuit/overload/over voltage protection Protection type: shut down and repower Operating Temperature - 20 to 70 C (- 4 to 158 F) Operating Humidity Max. 90 % non-condensing 2,992,000 hours Dimensions 40 x 100 x 90 mm (1.6 x 3.9 x 3.5 in.) Weight 300 g (10.6 oz.) Certifications CE UL 508 UL 60950-1 CB 60950-1 TUV EN60950-1 Class I, Div. 2 hazardous locations T4 |
