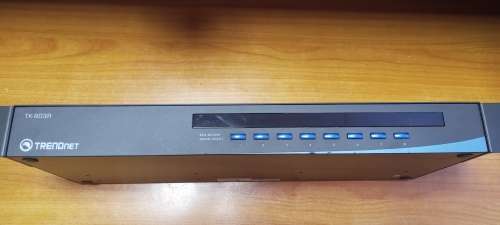

TrendNet 8-Port Rack Mount KVM Switch

Demo

8-port KVM switch with VGA and USB connection to computers

Supports both USB and PS/2 connections to console port

Device monitoring with adjustable Auto-Scan and audible feedback

Supports most operating systems and advance mouse designs

Connections :8 computers/servers

Standard :USB 1.1 Compliant

PC Ports :8 x VGA HDB 15-pin (female)

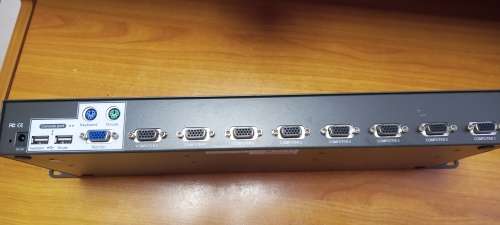

Console Port:

1 x USB (Type A)/PS/2 (6-pin mini-DIN) mouse

1 x USB (Type A)/PS/2 (6-pin mini-DIN) keyboard

1 x VGA HDB 15-pin (female)

Cable Interface (Sold Separately):

To KVM

1 x VGA HDB 15-pin (male)

To Computer

1 x VGA HDB 15-pin (male)

1 x USB (Type A)

Supported OS :Windows®, Linux, Mac® and more

PC Selection :Keyboard hot key command or push button

Auto-Scan Interval :10-99 seconds (Programmable through hot key)

LEDs :On-line (Red), Select (Green)

Keyboard Status :Saved & restored

Power Adapter:

Input: 100 ~ 240 V AC 50~60 Hz

Output: 9 V DC 1 A external power adapter

Dimensions :407 x 165 x 45 mm (16.0 x 6.5 x 1.8 in.)

Weight :1.83 kg (4.0 lb)

Temperature: Operating: 0 - 40°C (32 - 104°F)

Storage: -20 - 60°C (-4 - 140°F)

Humidity :Max 80% (non-condensing)

Certification :CE, FCC
