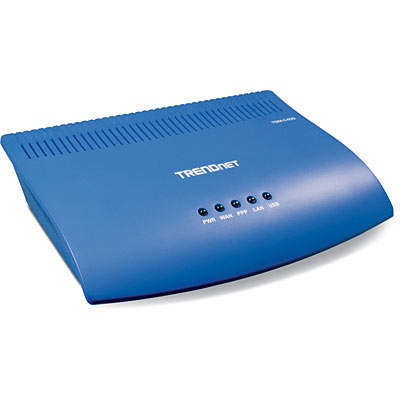

TRENDnet ADSL Fast Ethernet/USB Combination Modem Router

The TDM-C400 is ADSL/ADSL2+ customer premise equipment that provides high-speed asymmetrical data transmission on a single twisted copper pair. The DSL line interface supports various ADSL standards, up to ADSL2+. At the DTE side these CPEs provide, dual interfaces, a 10/100 Ethernet interface and one USB port for easy connection to users PC or LAN environment. TDM-C400 delivers broadband access for enterprises, telecommuters, home, and remote office workers with high-speed data transfer requirements.



• Compliant with ITU-T G.992.1 (G.dmt), G.992.2 (G.lite) and ANSI T1.413 Issue 2
• TDM-C400 is additionally compliant with ITU-T G.992.3 (G.dmt.bis / ADSL2), G.992.5 (ADSL2+) and provides up to 24Mbps downstream rate
• Compatible and interoperable with major Central Office side ADSL DSLAM or Multi-service Access System

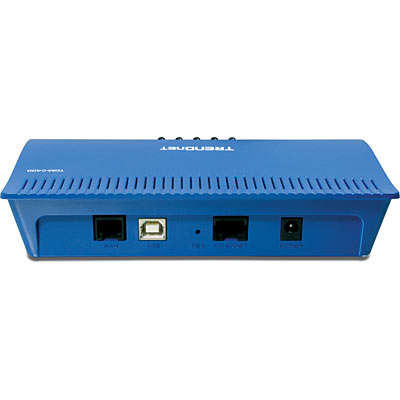

• One 10/100 Base-TX Ethernet port and one USB 1.1 device port for PC / LAN connection
• RFC2684 / 1483 to bridge or route traffic over ATM over ADSL
• Support Networking protocols such as PPP, IP routing, NAPT, relay / client
• Support local and remote configuration and management through Web, Telnet or SNMP
• Simple firmware upgrade via TFTP, FTP or HTTP
