FEATURES

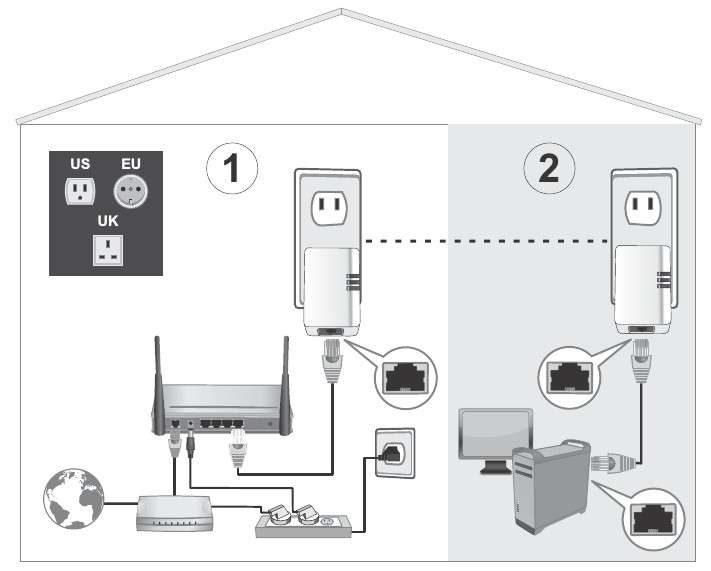

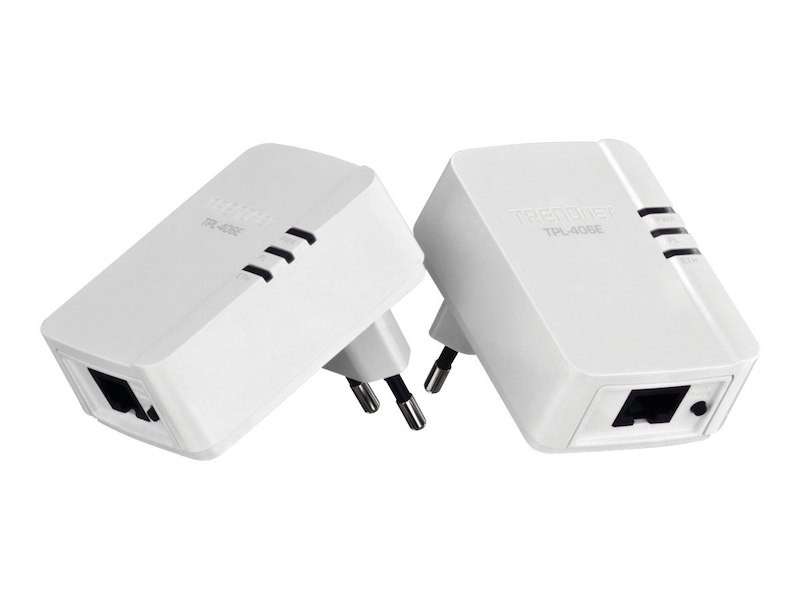

With theTPL-406E2K 500Mbps Compact Powerline AV Adapter KitfromTRENDnetyou can use any electrical outlet to create a secure high speed network. This Powerline AV Adapter Kit comes equipped with two adapters giving you everything you need to get started with powerline networking. Connect the first adapter to your network and plug the second adapter into any outlet on your electrical system for instant high speed network access. The compact form factor saves space around crowded electrical outlets. This adapter automatically connects to other TRENDnet Powerline AV adapters with no installation required.
Use up to 8 adapters to network devices in different rooms without running new cabling. Power Save mode reduces power consumption by 80%. Quality of Service (QoS) technology prioritizes video, audio, and online gaming. LED displays convey device status for easy troubleshooting. Advanced 128-bit AES encryption secures your network. This adapter is ideal for use in buildings that interfere with wireless networking signals.
Standards | HomePlug AV IEEE 1901 IEEE 802.3 IEEE 802.3x IEEE 802.3u |
Interface | 1 x 10/100 Mbps Auto-MDIX RJ-45 Port Power Prong •A: North America Type B (NEMA 5-15) •EU: Euro Type C (CEE 7/16) •UK: United Kingdom Type G (BS 1363) |
Frequency | 2-68 MHz |
Modulation | OFDM Symbol Modulation on link synchronization 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier |
Protocol | TDMA, and CSMA/CA |
Speed | Powerline: up to 500 Mbps Ethernet: up to 200 Mbps (Full Duplex mode) |
Nodes | Up to 8 (max) |
Network | Overlapping Powerline Networks: Up to 4 (per electrical system) |
Coverage | Up to 984 ft. / 300 meters |
Security | 128-Bit AES (Advanced Encryption Standard) |

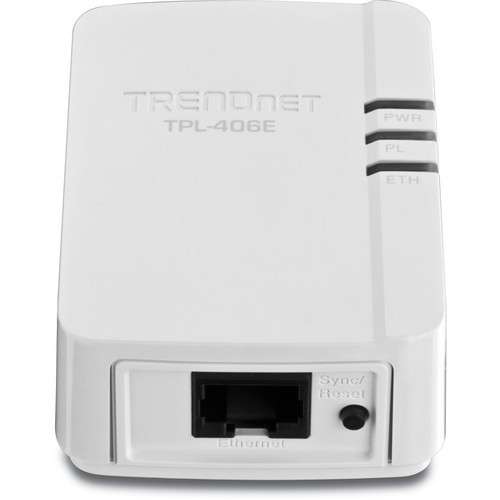

LEDs | Power (PWR) Powerline (PL) Connection •Best (Green) •Better (Amber) •Good (Red) •No connection (Off) Ethernet (ETH) Connection •Solid •Blinking •Off |
Buttons | Sync (3 sec.) / Reset (20 sec.) |
System Requirements | Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit) |
Certifications | CE, FCC |
Power Requirements | 100-240V AC, 50-60Hz Active Mode: 2.2 Watts (max) Standby Mode: 0.5 Watts (max) |
Environmental Requirements | Operating Temperature: 32-104°F / 0-40°C Storage Temperature: 14-131°F / -10-55°C Humidity: Max 95% (non-condensing) |
Dimensions (L x W x H) | A: 70 x 50 x 43 mm per unit EU:70 x 50 x 63 mm per unit UK: 70 x 50 x 58 mm per unit |
Weight | A: 51 g EU: 56.7 g UK: 68 g |
