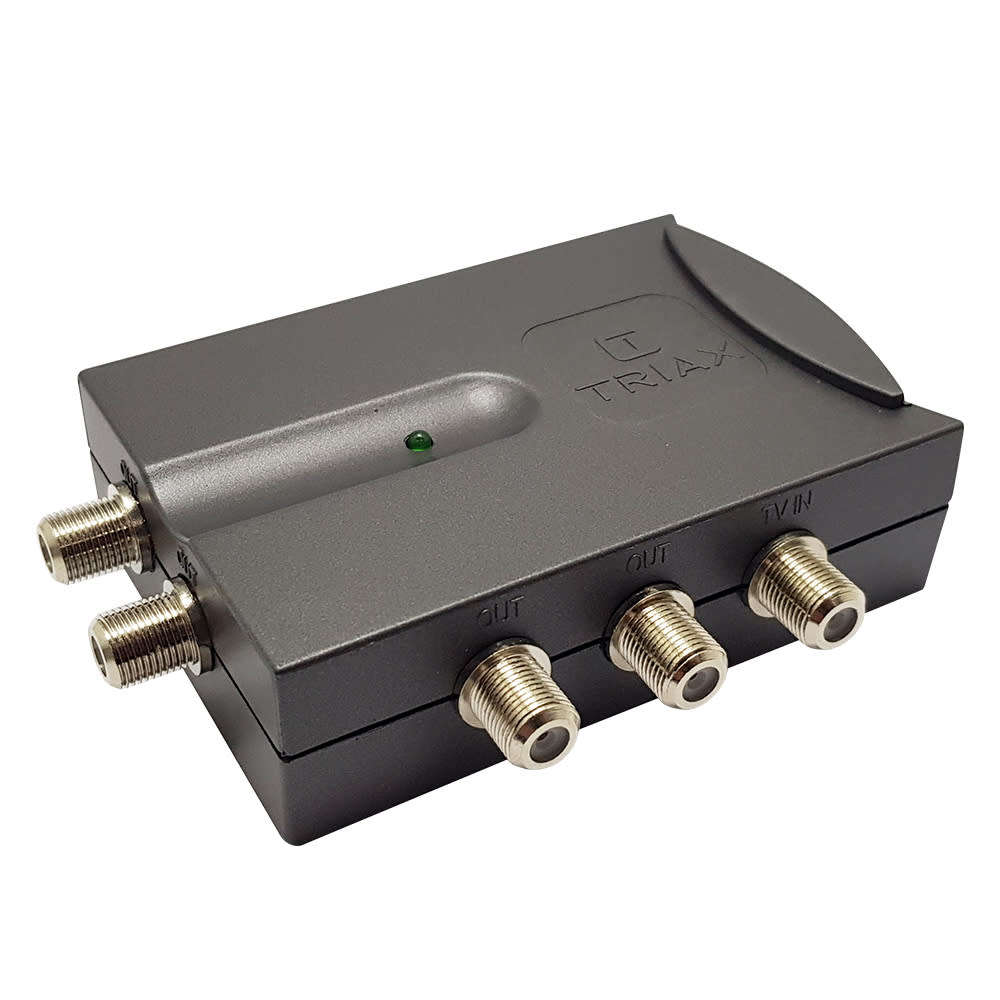

Triax 1-in 4-out Active TV Link Splitter with IR Return (SLX4-TRIAX)

Triax 4 Way Powered Active RF Splitter Active Compact Aerial Splitter with RF Amplifier and DC Power Pass Split TVLinks or RF Distribution to additional TVs.

Product code: SLX4-TRIAX

1×4 Active RF Splitter

Triax 4 Way Powered Active RF Splitter / Compact Aerial Splitter with RF Amplifier and DC Power Pass

4 Way Powered Active RF Splitter Active Compact Aerial Splitter with RF Amplifier and DC Power Pass Split TVLinks or RF Distribution to additional TVs.

Active RF Splitters are used to distribute a single RF / Aerial signal to multiple displays with RF inputs. It is commonly used to split the RF Video from DStv Decoder to multiple rooms and enable remote changing of channels via a TVLink / IR Eye. Based on your current requirements you may require a 2-port, 4-port or larger splitter. Cable lengths using High Quality RG6U 64 Braid cable can be up to 30m from the Active RF Splitter outputs. On longer cable lengths an optional external power adapter can be connected to the Active RF Splitter to provide additional power for longer cable runs.

Designed for current Multichoice DSTV extra view systems.

The Perfect RF OUT to RF OUT Solution.

Screened enclosure within plastic housing with clip on base

Weight (kg) 0.215 kg

Size LxWxDxH (mm) 107 x 85 x 35 x 130 mm

Connectors:

Number of inputs 1

Number of outputs 4

Input connector F Female

Output connector F Female

Frequency range:

Frequency range return path 5-30 MHz

Frequency range 88-862 MHz

Gain 7dB Forward / 6dB Return Typ dB

Max. output level  89dBµV
