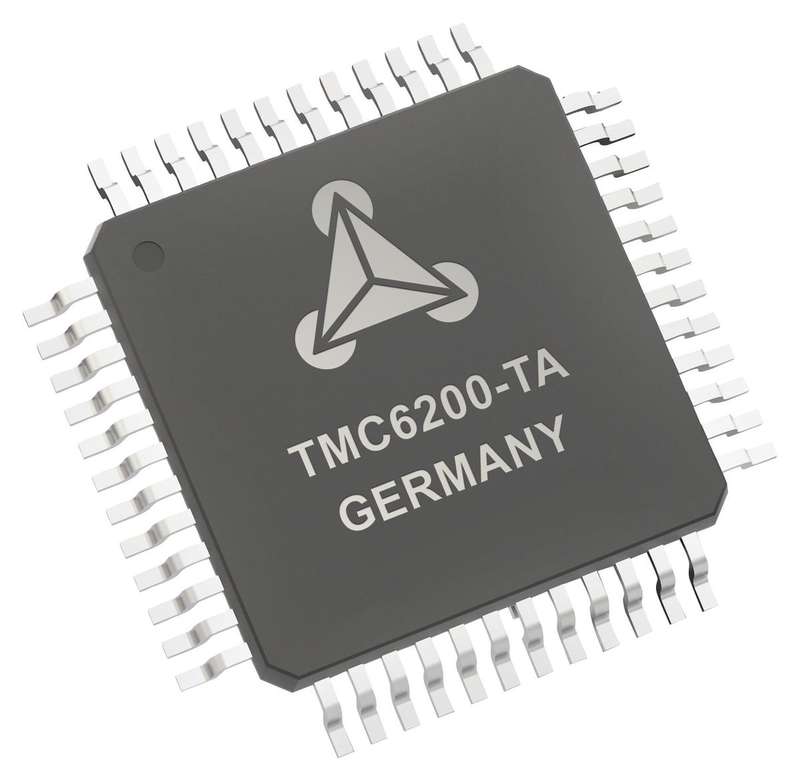

Trinamic (TMC6200-TA) Motor Driver/Controller, 8VDC to 60VDC

Motor Driver/Controller, BLDC, PMSM, Servo, 8VDC to 60VDC, 60V/1 Output, TQFP-48Product OverviewThe TMC6200 is a high-power gate-driver for PMSM servo or BLDC motors. Using sixexternal MOSFETs and two or three sense resistors, it integrates the full highvoltage part of a PMSM drive system for 12V, 24V or 48V, including in-linecurrent sense amplifiers with programmable amplification. It can drive a widerange of motors from Watt to Kilowatt.3-phase motors up to 100A coil current (external MOSFETs)Voltage Range 8 60V DCGate Drive Programmable 0.5A / 1A / 1.5AFull Protection and Diagnostics via SPI interface3 Floating Sense Amplifiers with programmable gain (5, 10, 20)Gate Off Drive with 1R (LS) / 1.3R (HS) safe hold off resistanceSPI & Stand-Alone operationCharge Pump for 100% Duty Cycle operationOptional BBM break-before-make logic for single line controlProgrammable Short and Overload current threshold and retryProgrammable Control Interface with 3 line or 6 line driveApplicationsIndustrial Automation, Automation & Process ControlProduct InformationMotor Type: BLDC, PMSM, ServoNo. of Outputs: 1OutputsOutput Voltage: 60VDriver Case Style: TQFPNo. of Pins: 48PinsSupply Voltage Min: 8VDCSupply Voltage Max: 60VDCOperating Temperature Min: -40°COperating Temperature Max: 125°CMSL: MSL 3 - 168 hours
