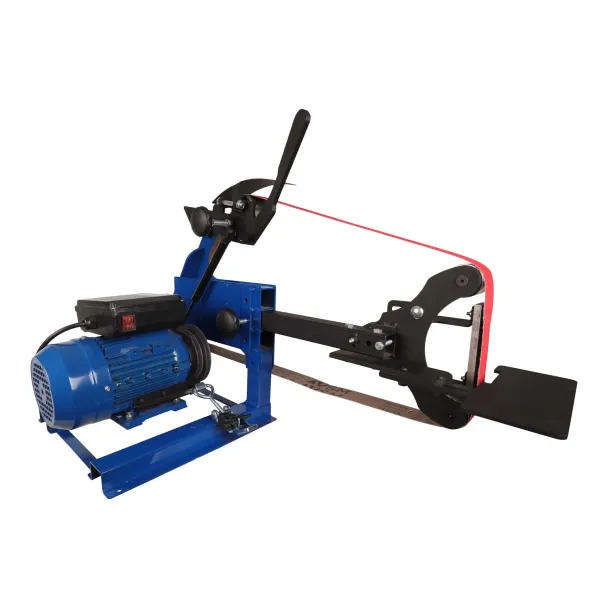

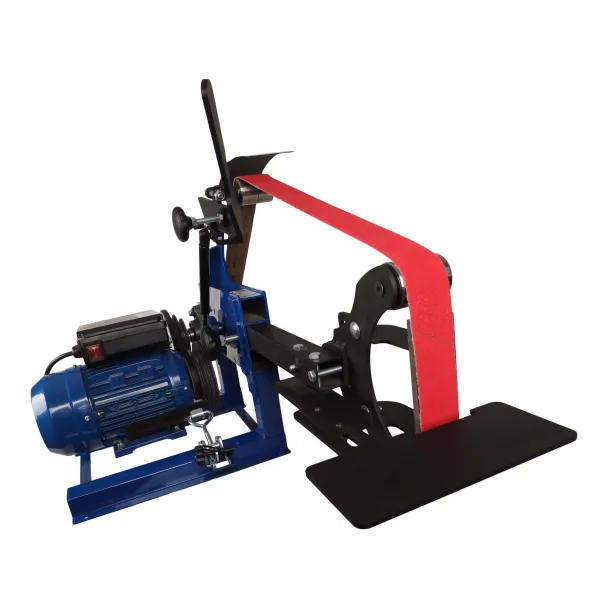

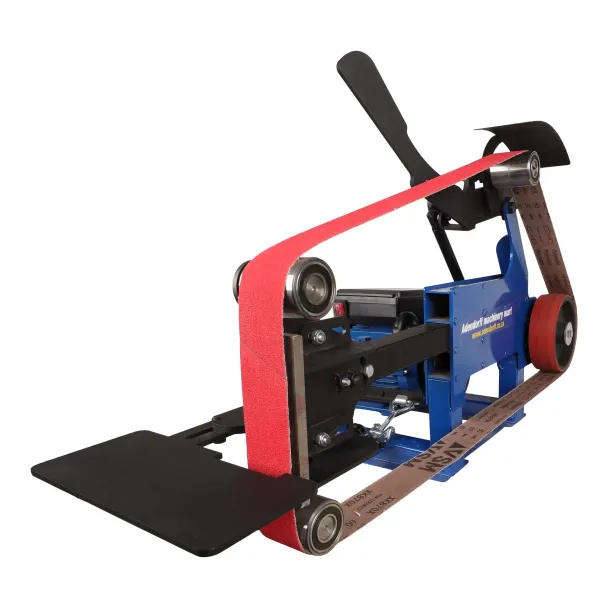

TRINITY 7 XL Multipurpose Variable Speed Bench Grinder 1 HP High Torque Motor

TRINITY 7 XL Multipurpose Variable Speed Bench Grinder 1 HP High Torque Motor

The TRINITY 7 XL is a highly capable multipurpose bench grinder built for both horizontal and vertical grinding applications. Powered by a high torque 0.75 kW (1 HP) motor and equipped with a three-step variable speed system, this machine offers precise control for tasks such as knife making, sharpening, polishing, and heavy-duty grinding. It supports a wide range of belt sizes and optional accessories, making it a flexible solution for both professional workshops and serious DIY users. Please note: Grinding belts are sold separately.

Features

• High torque 0.75 kW (1 HP) motor ensures reliable, consistent performance

• Three-step variable speed for controlled grinding and finishing

• Supports horizontal and vertical grinding configurations

• Adjustable platen arm accepts belts of various lengths and widths

• Polyurethane-coated tracking wheel with gas strut tension arm

• Adjustable forward/backward tool rest for added precision

• Optional accessories available: small wheel attachments, contact wheels, tool rests

Specifications

• Power Output: 0.75 kW (1 HP) High Torque

• Voltage: 230 V @ 50 Hz

• Variable Speed: 3-Step Variable Speed

• Drive Wheel: 150 mm Polyurethane Coated

• Tracking System: Polyurethane Coated Tracking Wheel on Gas Strut Tension Arm

• Tool Rest: Adjustable (Forward/Backward)

• Adjustable Platen Arm: Supports 2" x 72", 2" x 80", and 50 x 2000 mm belts (Widths: 25, 30, and 50 mm)

• Platen: 260 mm high flat platen with tiltable adjustable backing plate

• Accessories: Optional Small Wheel Attachment, Contact Wheels, Adjustable Tool Rest
