Truck Diagnostic Tool For Volvo VCADS Pro 2.40 Version Heavy Duty Multi Languages
For VOLVO VCADS Function:Diagnostic Program designed to read and clear fault codes.
Reprogram ECM parameters and ECMS
All features unlocked for the following manufacturers
[1] for Volvo Truck Corporation
[2] for Volvo Bus Corporation
[3] for Volvo Penta
[4] for Volvo Construction Equipment
[5] for Mack
[7] for FAW
[8] for CNHTC
[9] for OEM
PTT is a Windows based diagnostic application specially designed to test, calibrate and program engine parameters.
This software supports VN, VT, VHD, WG, WX and AC from model year '98 forward.Tests for fault tracing for Volvo D7C,
D11F, D12B, D12C, D12D, D13F, D16D and D16F engines are incorporated into PTT.
For VOLVO VCADS Adjustments and Improvements:Support for new language: Thai
Support for new models: FL and FE
The Option dialog in the Tool menu has been updated.
Manually entered chassis series are validated on the local computer.
Possibility to correct parameter values that are incorrect according to specifications.
Parameters with values that are not valid are marked with red color. Previously,
this situation caused an error that interfered with parameter programming.
Help desk tool is updated. The actions 1 - Update phone book and
3 - Change connection type are found under 1 - Central Communications Settings.
Campaigns which have been downloaded in intermediate storage mode but are not reported will,
after 30 days, be reported as not performed for safety reasons.
If the hardware part number in the control unit differs from the hardware part number stored in the central systems,
VCADS Pro will automatically check if there is an appropriate conversion kit available.
If this is the case, a dialog box appears asking the user to run the conversion kit.
With for Volvo VCADS Pro 2.40.00 You Can Do: 1.For VOLVO TRUCKS: AC, FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565,
NH12, FL6,FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12
2.For VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY
3.For VOLVO CONSTRUCTION EQUIPMENT (CE):
For Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F,
L60E, L60F, L70E, L70F, L90E, L90F
For Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D
For Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C,
EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C,
EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B,
EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
4.For Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 ,G970, G976, G990
5.For Compact Excavator: ECR88
Specification:| Version | 2.40 |
| Power | 8W |
| Voltage | 12V |
| Certification | CE |
| Material Type | Plastic |
| Special Features | Heavy Duty Diagnostic |
| Supported Languages | English, French, Spanish, German, Italian, Russian,
Hungarian, Dutch, Danish, Chinese, Norwegian, Polish,
Turkish, Czech, Swedish, Japanese, Thai |
| Item Weight | 0.85 kg |
| Dimension | 28*240*6cm |

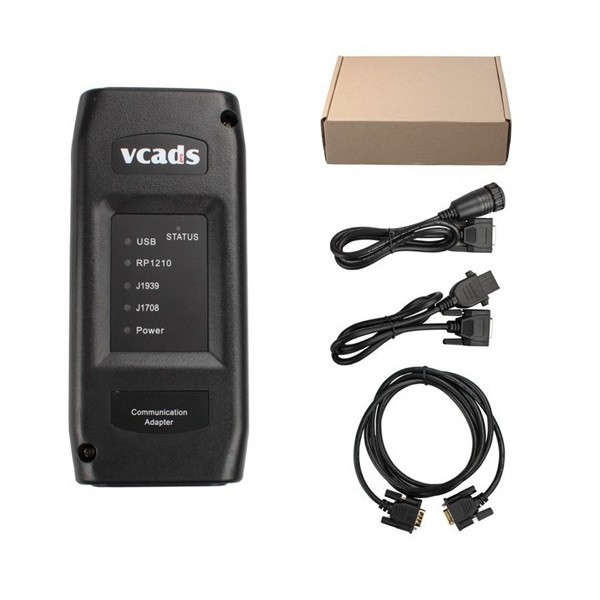

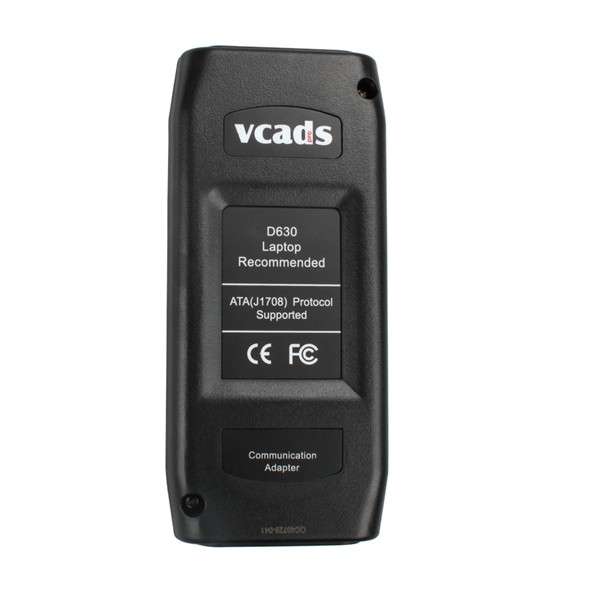

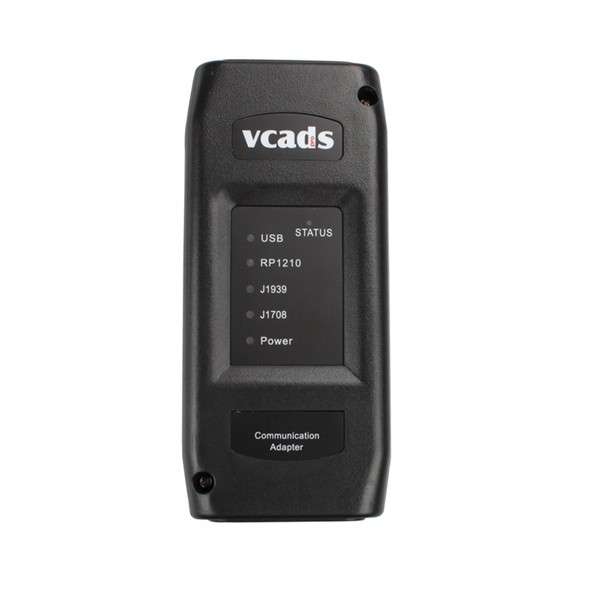

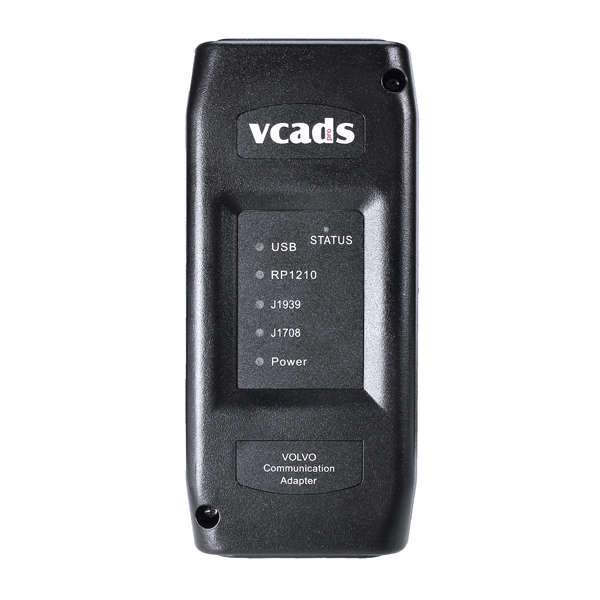

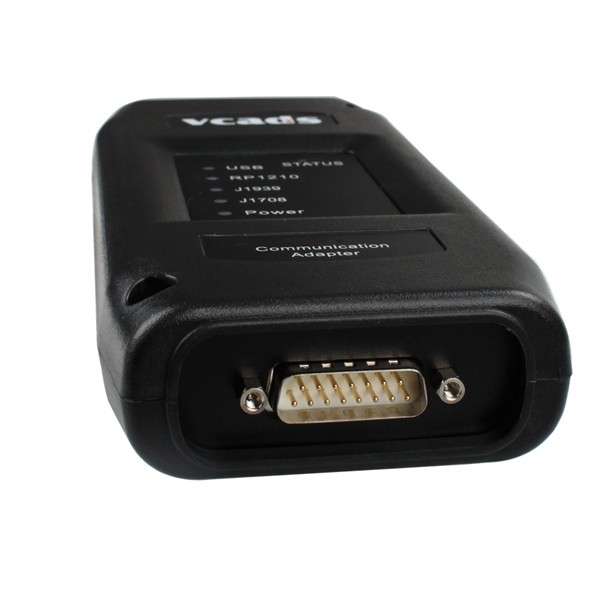

Package Included:1 X 9998555 Adapter Main Unit

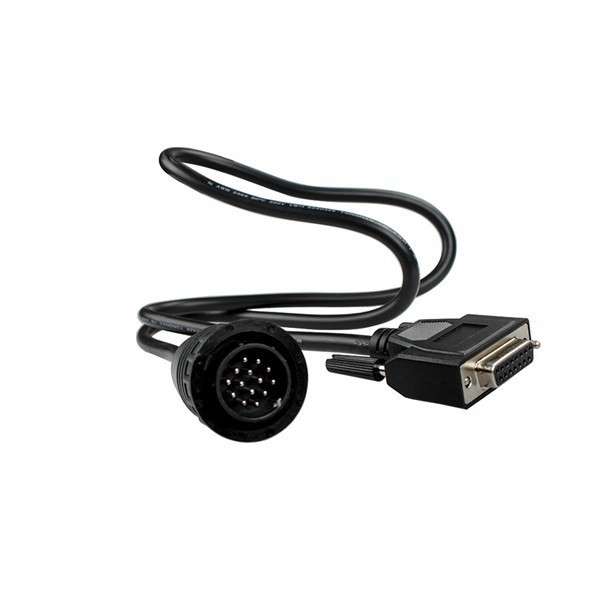

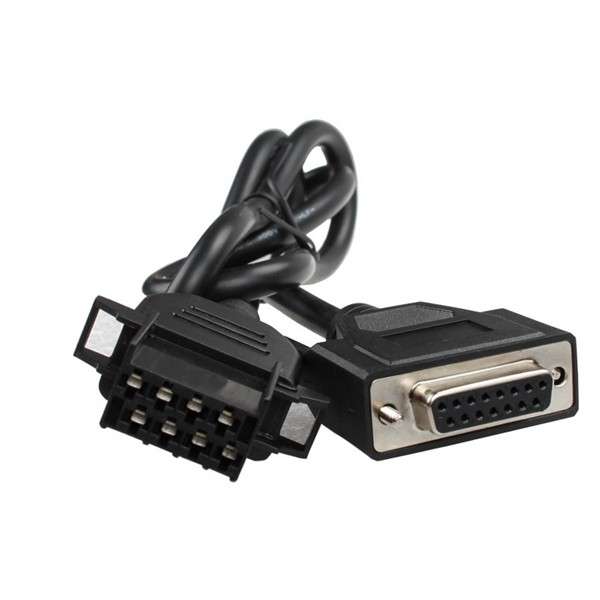

1 X 8Pin to 16pin Cable
1 X 14Pin to 16Pin Cable
1 X Carry Box
1 X Volvo VCADS(PTT 1.12) Software 2.40 Version Disc

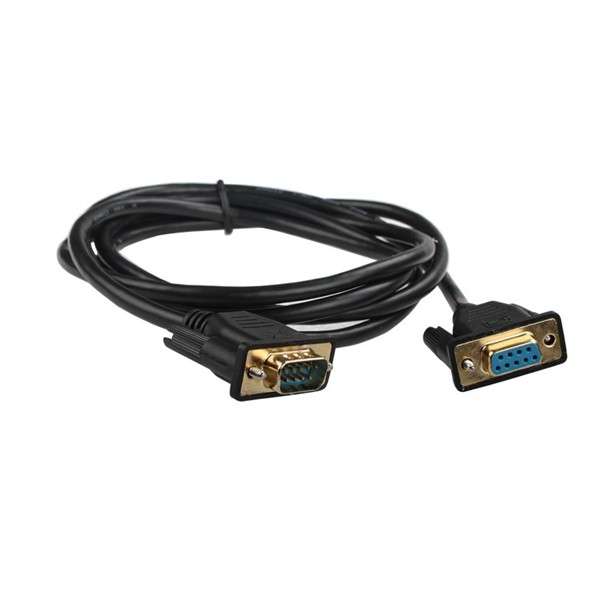

1 X COM Cable
