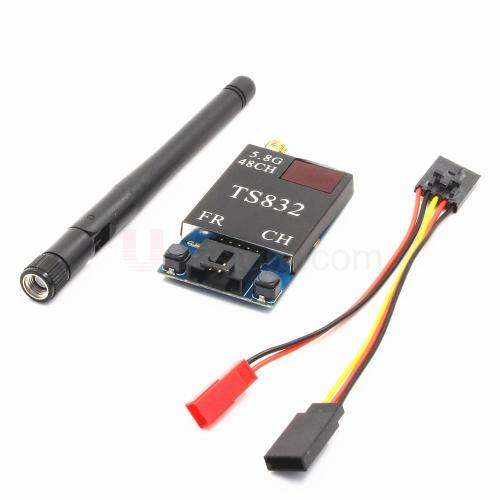

TS832 FPV systems 5.8 GHz 600 MW 48ch AV transmitter

 his is the new 48- CHannel Release 5.8 G 600 MW A / V wireless system.
Features:
-32 channels: cover A, B, E Bands and f Band (Airwave Band), 4 bands and all frequencies of compact operation;
-Two shift buttons: CH button for frequency switching channels, FR button for switching frequency bands;
-Two display digits: one for CH and another for FR, -In real time, in which the frequency band and which channel is received;
-Disconnect memory: Replay very latest frequency range and channel
-An independent video and audio signal outputs
Specifications:
-Video format supported: NTSC / PAL -Antenna connection
: RP-SMA, Jack (module side)
-Log supply: 7.4-16 V (3 S Lipo proposed)
-Peredayuschaya Power: 600mA
coefficients antenna: 2dB
-Working current: 220ma at 12
band pass: 8m
audio band is 6.5 m
-Weight in multiples of 22 g-
Dimension: 54x32x10 mm (without antenna)
* Note: The TX antenna must be installed properly before it is turned on, the power on without antenna installation, or the wrong antenna used, can easily burn TX.

How to use?

The package includes:

-1 x transmitting unit (TX)
-1 x antenna (2db)
-1 x basic set of wires
